V Oracle iQ
V Oracle iQ

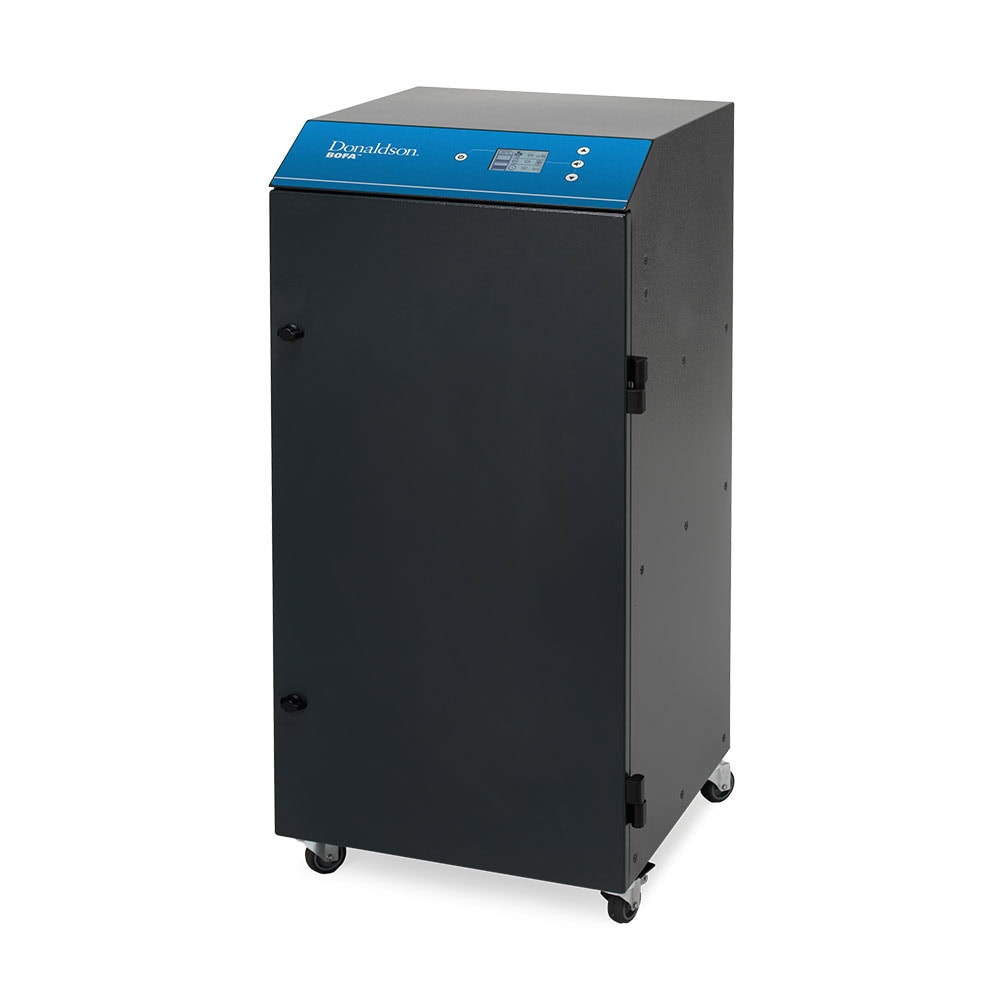

The V Oracle iQ integrates a variety of features, including our Intelligent Operating System (iQ), into one unique system. This versatile system is suitable for a range of electronics applications.
- High contrast display
- Real-time airflow reading
- Independent filter condition monitoring
- Remote diagnostics via USB
Approvals: UKCA and CE
Features
Intelligent Operating System (iQ)
Our Intelligent Operating System (iQ) provides easy-to-access real-time data on your extraction system’s performance. It offers multiple performance enhancements, including improved extraction efficiency, individual filter status monitoring, and integrated design features designed to lower the cost of ownership.

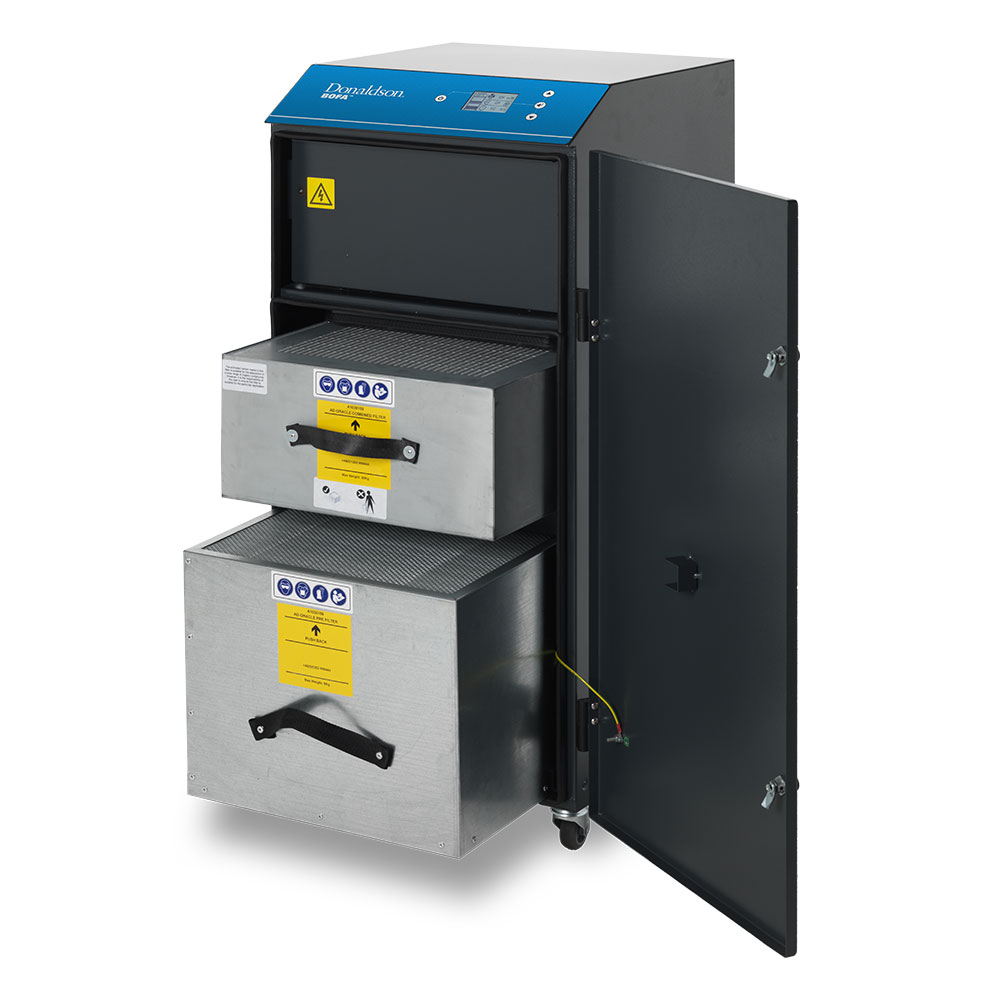

DeepPleat DUO pre-filter
Our DeepPleat DUO pre-filter is designed to maximize filter life. It incorporates a large capacity drop-out chamber within the filter which is designed to act as a pre-separator helping to extend the life of the pre-filter which in turn protects against the premature blocking of the HEPA filter.
HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Reverse flow air technology
Our reverse flow air technology reduces velocity and changes air direction, causing larger particulate to fall into the filter’s drop-out chamber. This decreases particulate entering the filter media, significantly enhancing filter capture performance, and extending filter life.
Automatic flow control
Automatic flow control allows the user to pre-set the correct airflow rates for the specific application, subsequently helping to maintain the airflow. This generates lower noise levels and helps to protect the more expensive HEPA filters.
Multi-voltage sensing
Automatically senses the local voltage and adjusts accordingly.
Onboard compressor (optional)
Our onboard compressor is designed to provide the laser with its air supply requirements. Unlike standalone air compressors, our onboard compressor sits inside the extraction system for a simpler, more compact installation.
Remote stop/start signal (optional)
Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
VOC sensor (optional)
Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions | 38.39 x 17.91 x 19.88” | 975 x 455 x 505 mm |
| Weight | 143 lbs | 65 kg |
| Airflow / Pressure | 223 cfm / 96 mbar | 380 m³/hr / 96 mbar |
| Electrical data | 100-230 V 1 ph 50/60 Hz Full load current: 12.5 amps / 1.1 kw | 100-230 V 1 ph 50/60 Hz Full load current: 12.5 amps / 1.1 kw |
| Noise level (at typical operating speed) | < 60 dBA | < 60 dBA |

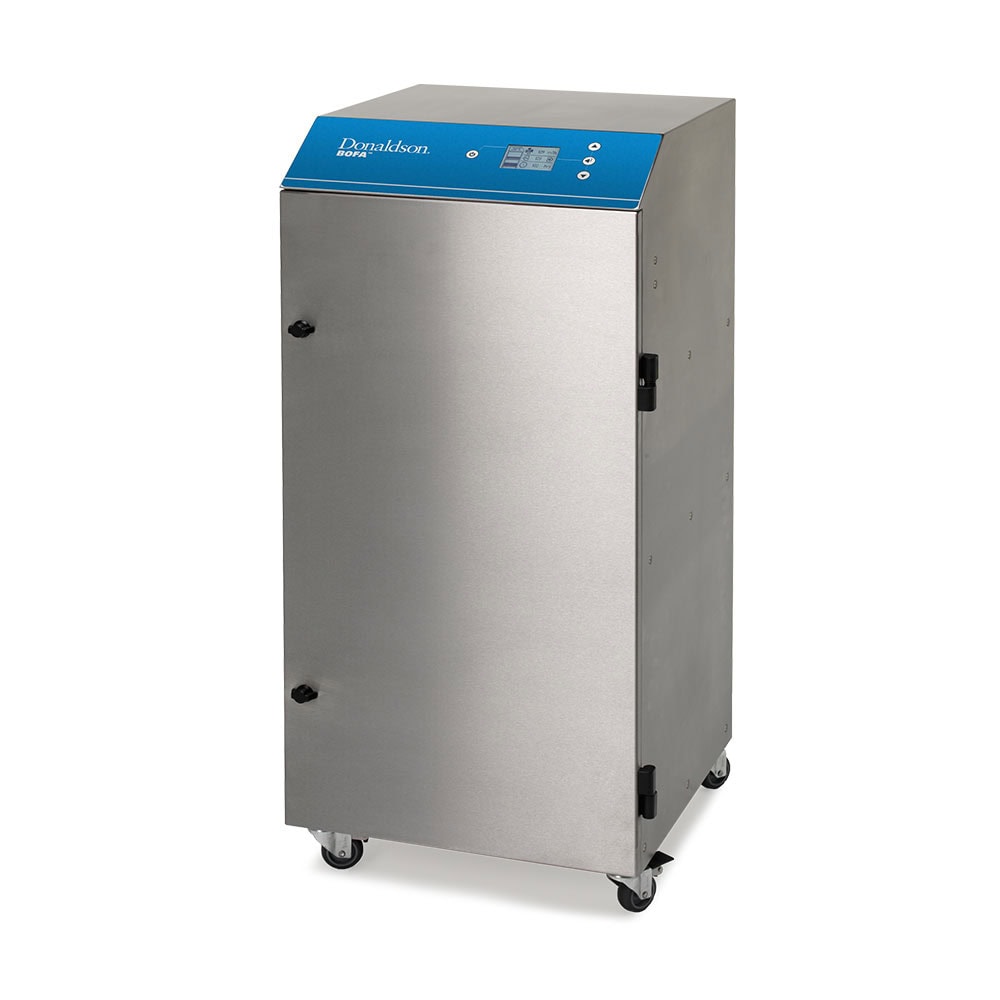

| Cabinet construction | Brushed stainless steel / powder-coated mild steel | Brushed stainless steel / powder-coated mild steel |
