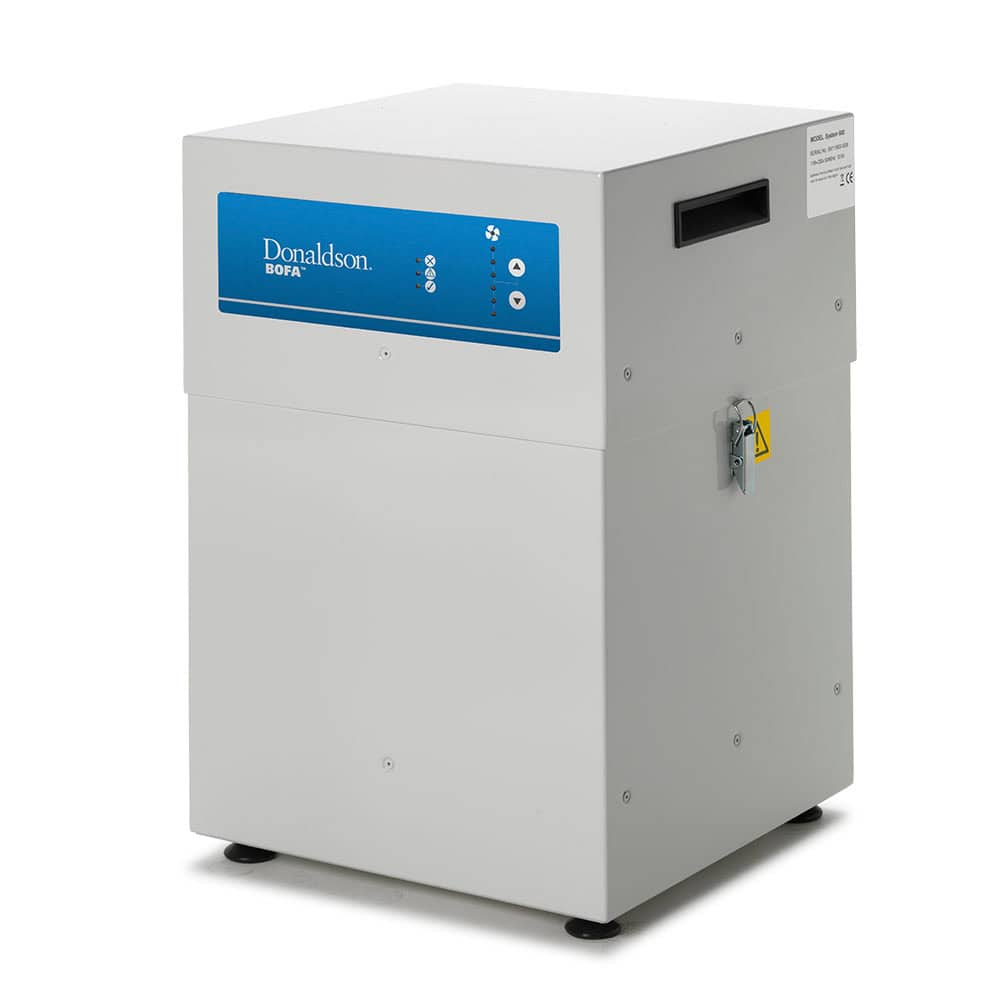

V 600
The V 600 fume extraction system is designed to filter fume from soldering and various electronics applications. It features a long-lasting filter, high airflow rates, and the capacity to support up to seven operators.
- Long-life, low-cost replacement filters
- High airflow rates
- Built-in silencing
Approvals: UKCA and CE
Features

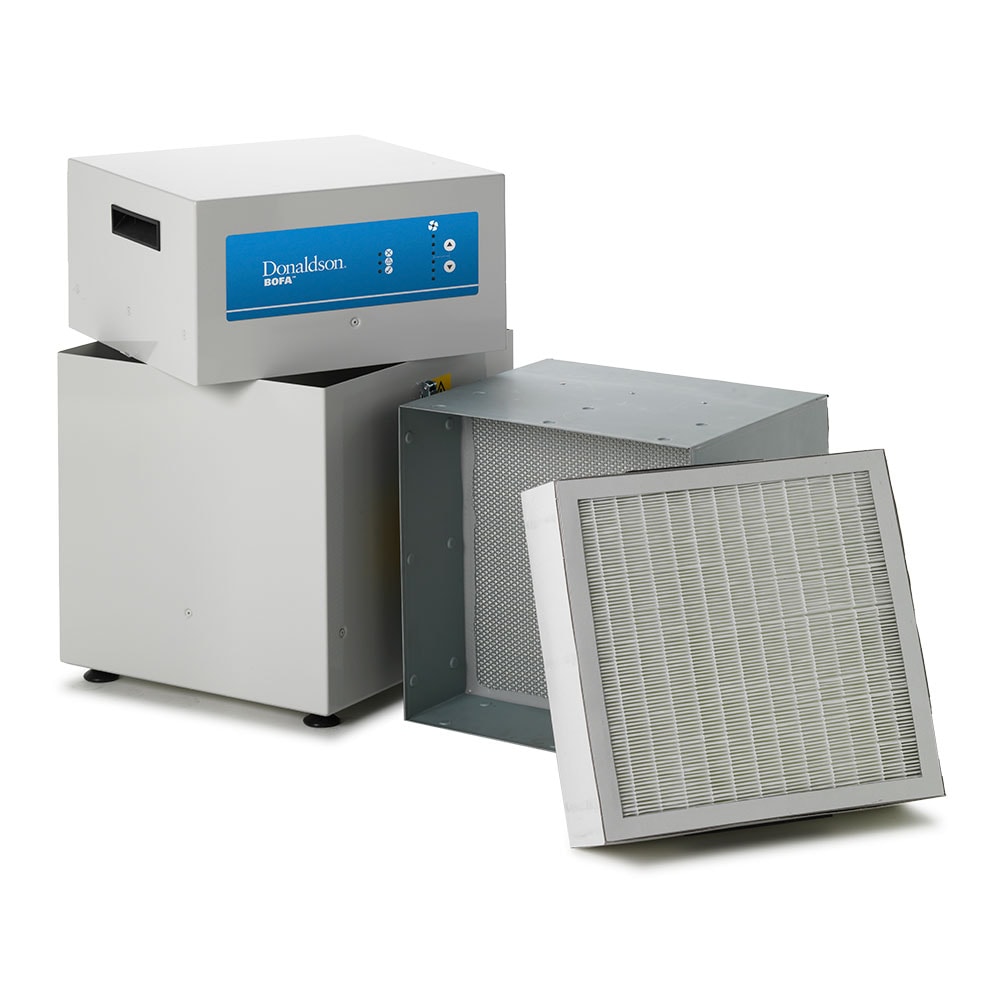

DeepPleat pre-filter
The DeepPleat pre-filter consists of a pleated filter allowing for increased surface area within a smaller volume. This means Donaldson BOFA filters last for a long time and do not take up a large footprint.
HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Reverse flow air technology
Our reverse flow air technology reduces velocity and changes air direction, causing larger particulate to fall into the filter’s drop-out chamber. This decreases particulate entering the filter media, significantly enhancing filter capture performance, and extending filter life.
Multi-voltage sensing
Automatically senses the local voltage and adjusts accordingly.
System OK signal (optional)
Our system OK signal alerts you when there is a fault, when filters are blocked, and when filters are approaching full capacity, allowing you to schedule maintenance efficiently.
Remote stop/start signal (optional)
Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
VOC sensor (optional)
Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions | 23.23 x 14.76 x 18.31” | 590 x 375 x 465 mm |
| Weight | 77 lbs | 35 kg |
| Airflow / Pressure | 206 cfm / 96 mbar | 350 m³/hr / 96 mbar |
| Electrical data | 115-230 V 1 ph 50/60 Hz Full load current: 12.5 amps / 1.1 kw | 115-230 V 1 ph 50/60 Hz Full load current: 12.5 amps / 1.1 kw |
| Noise level (at typical operating speed) | < 60 dBA | < 60 dBA |
| Cabinet construction | Powder-coated mild steel | Powder-coated mild steel |
Documentation
Product Inquiry
For more information about this product, please get in touch. Simply fill out the form, specify the system you’re interested in, and a member of the team will get back to you.
Filter Technology
We offer a variety of pre, main, and inline filters designed to effectively capture dust and particulate generated across a wide range of applications.
Smart Technology
Our Intelligent Operating System (iQ) provides easy-to-access real-time data on your extraction system’s performance. It provides improved extraction efficiency, individual filter status monitoring, and integrated design features.
SureCHECK
We uphold our quality standard through our unique SureCHECK process. We conduct rigorous testing and inspections on every product we make to ensure product integrity, reliability, and performance.
