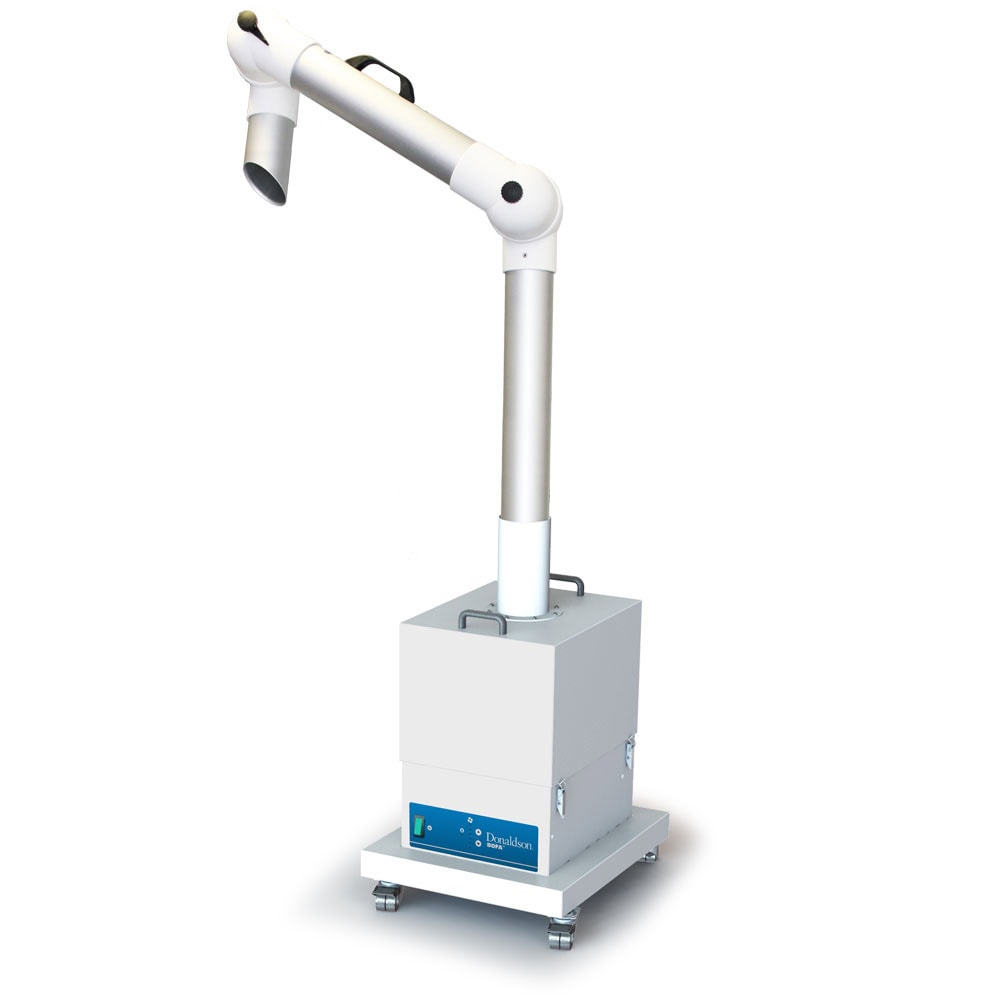

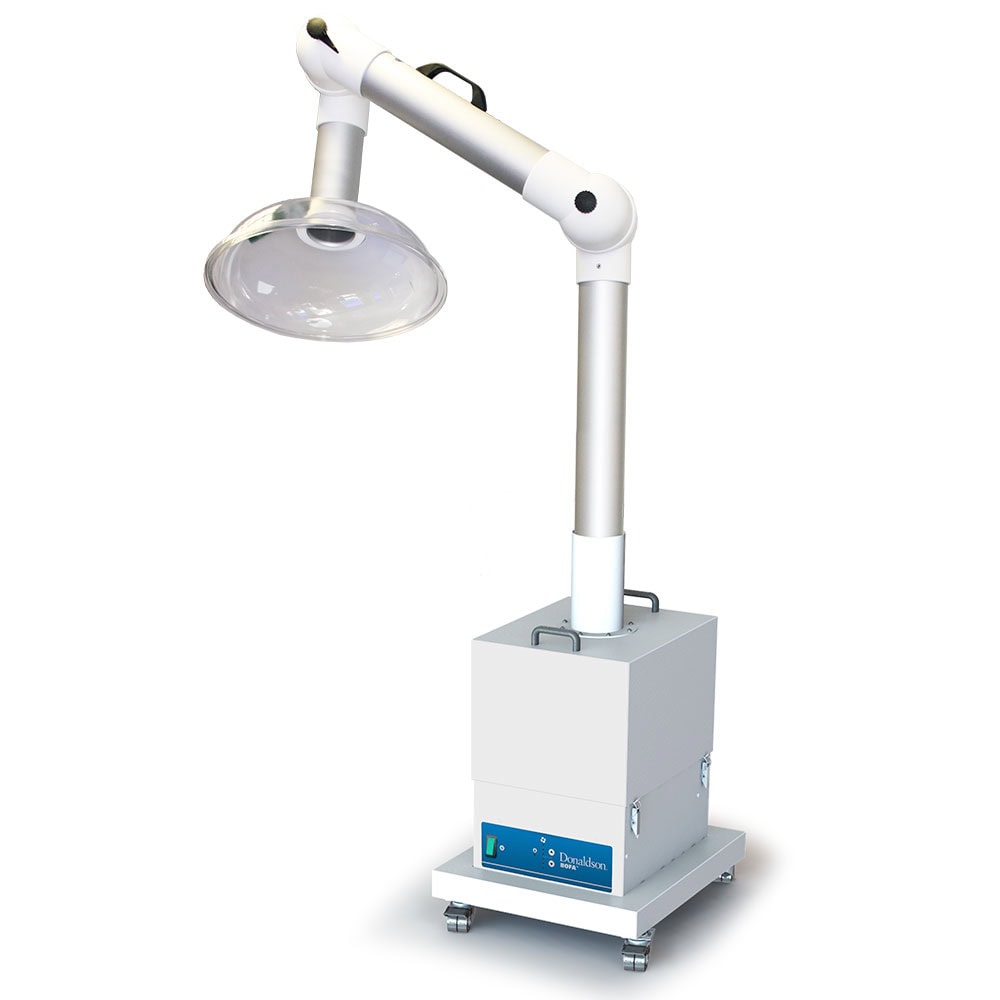

Mobile FumeKART

A multi-purpose mobile dust and fume extraction system
Ideal For: Hand soldering, solvents, injection molding purge cycle, painting.

The Mobile FumeKART is a versatile and portable dust and fume extraction system suitable for a variety of applications. Designed to filter dust particles, weld fumes, vapors, and other pollutants from the work environment, the FumeKART is easy to operate and maintain and provides the additional benefit of being fully portable.

  • Low noise level
  • Fully portable

Approvals: UKCA and CE

Features

DeepPleat icon

DeepPleat pre-filter

The DeepPleat pre-filter consists of a pleated filter allowing for increased surface area within a smaller volume. This means Donaldson BOFA filters last for a long time and do not take up a large footprint.

HEPA icon

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns.  A secondary filter to remove fine particulate.

ACF Technology icon

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.

Multi Voltage Sensing Unit icon

Multi-voltage sensing

Automatically senses the local voltage and adjusts accordingly.

VOC Sensor icon

VOC sensor (optional)

Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.

Technical specification

ImperialMetric
Dimensions33.07 x 18.70 x 21.65”840 x 475 x 550 mm
Weight119 lbs54 kg
Airflow / Pressure223 cfm380 m3/hr
Electrical data110 - 230 V 1 ph 50/60 Hz
Full load current: 12.5 amps
110 - 230 V 1 ph 50/60 Hz
Full load current: 12.5 amps
Noise level (at typical operating speed)< 64 dBA< 64 dBA
Cabinet constructionPowder-coated mild steelPowder-coated mild steel

Documentation

Product Inquiry

For more information about this product, please get in touch. Simply fill out the form, specify the system you’re interested in, and a member of the team will get back to you.

BOFA support team member

Filter Technology

We offer a variety of pre, main, and inline filters designed to effectively capture dust and particulate generated across a wide range of applications.

Smart Technology

Our Intelligent Operating System (iQ) provides easy-to-access real-time data on your extraction system’s performance. It provides improved extraction efficiency, individual filter status monitoring, and integrated design features.

SureCHECK

We uphold our quality standard through our unique SureCHECK process. We conduct rigorous testing and inspections on every product we make to ensure product integrity, reliability, and performance.
