V 250
V 250

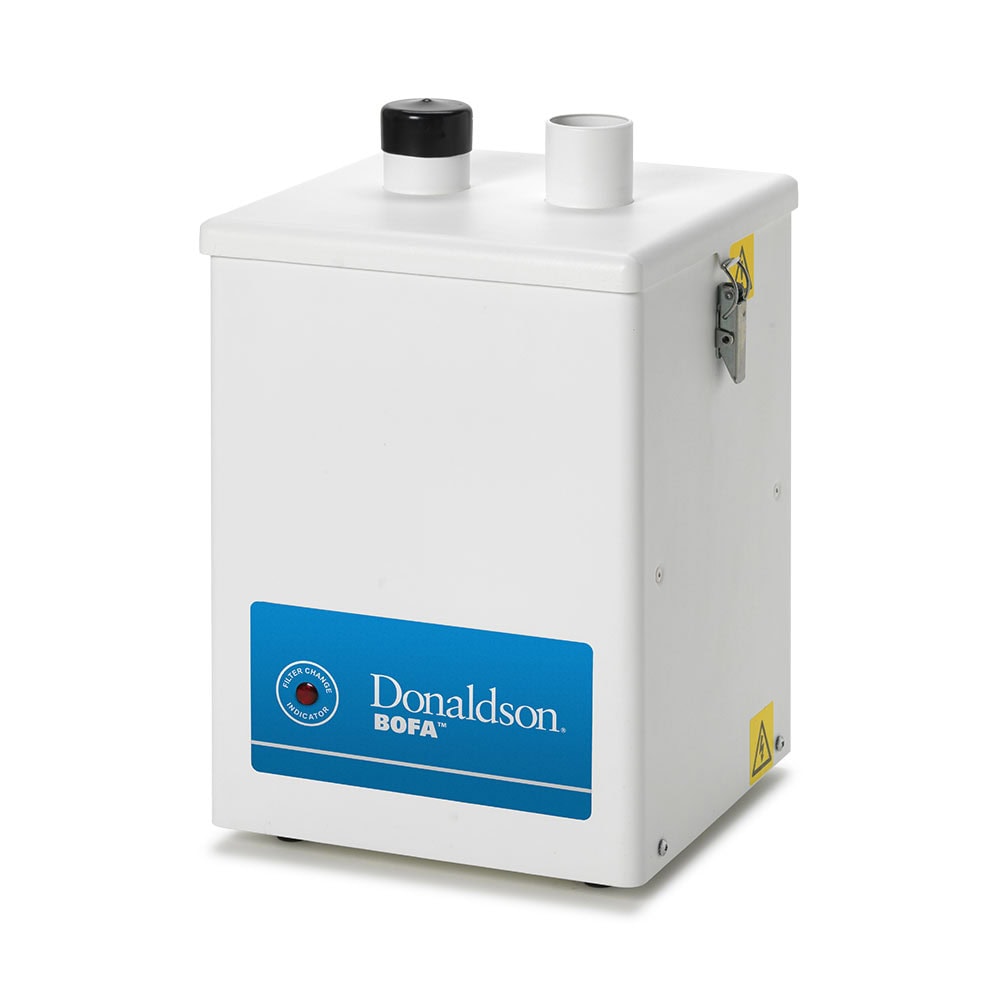

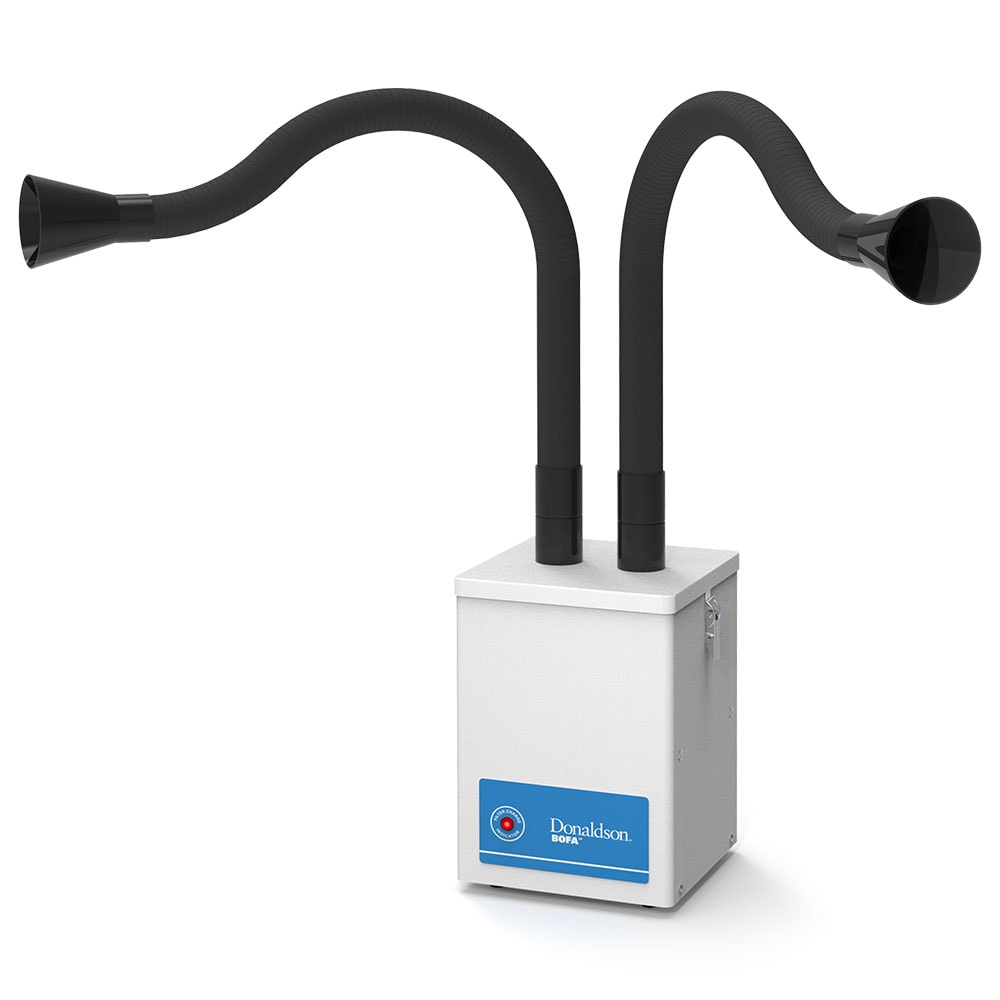

The V 250 is a dual-arm, portable solder fume extraction system. It comes complete with two extraction arms and an easy-to-follow installation kit containing everything required to set up two operators with ease. The minimal installation allows for convenient relocation when factory layouts change.
- Simple installation
- Portable
Approvals: UKCA and CE
Features

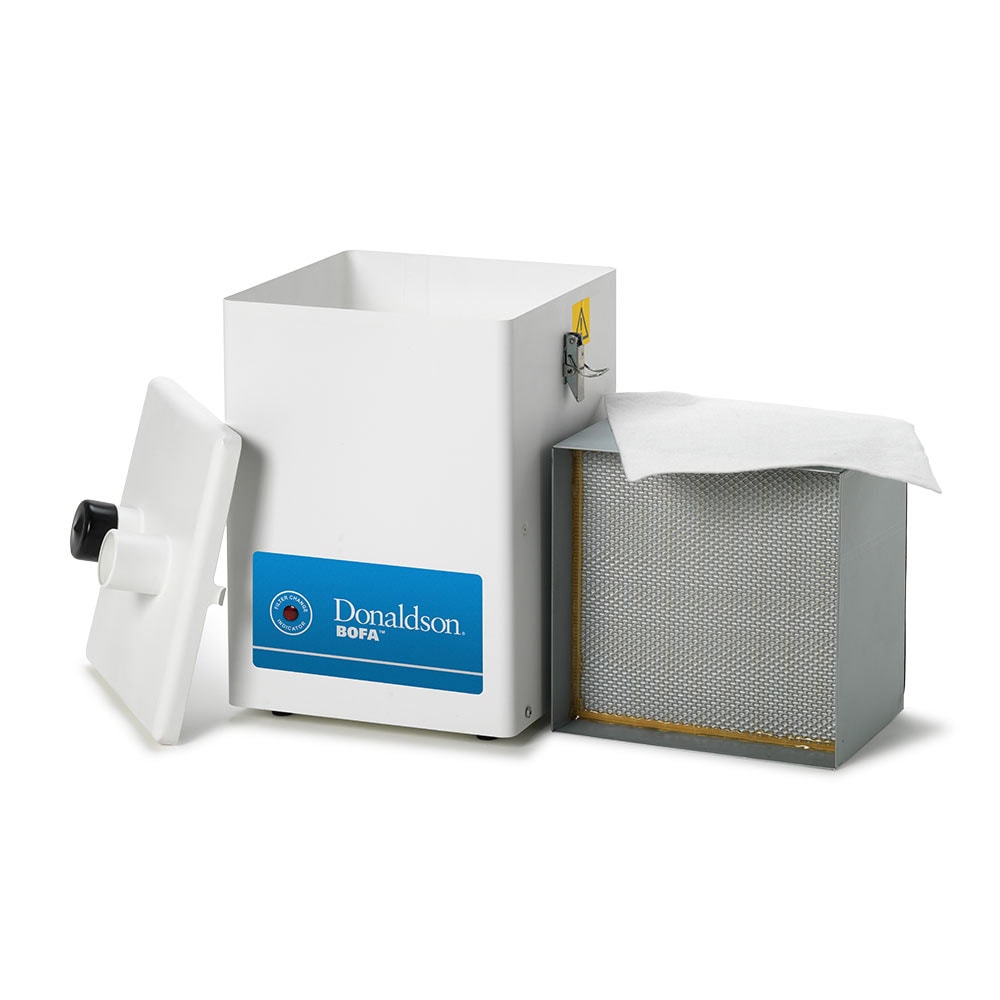

HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Remote stop/start signal (optional)
Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
Filter change signal (optional)
Our filter change signal alerts you when your filter is full and needs changing.
Technical specification
Imperial | Metric | |
---|---|---|
Dimensions | 16.54 x 11.42 x 10.63” | 420 x 290 x 270 mm |
Weight | 22 lbs | 10 kg |
Airflow / Pressure | 106 cfm / 30 mbar | 180 m³/hr / 30 mbar |
Electrical data | 115 V 60/50 Hz Full load current: 1.2 amps / 135 w | 230 V single-phase 1~ 50/60 Hz Full load current: 0.9 amps / 135 w |
Noise level (at typical operating speed) | < 61 dBA | < 61 dBA |
Cabinet construction | Powder-coated mild steel | Powder-coated mild steel |
Documentation
Product Inquiry
For more information about this product, please get in touch. Simply fill out the form, specify the system you’re interested in, and a member of the team will get back to you.
Filter Technology
We offer a variety of pre, main, and inline filters designed to effectively capture dust and particulate generated across a wide range of applications.
Smart Technology
Our Intelligent Operating System (iQ) provides easy-to-access real-time data on your extraction system’s performance. It provides improved extraction efficiency, individual filter status monitoring, and integrated design features.
SureCHECK
We uphold our quality standard through our unique SureCHECK process. We conduct rigorous testing and inspections on every product we make to ensure product integrity, reliability, and performance.
