T 15
The T 15 extraction system is designed to filter fumes and debris from hand soldering applications with up to 15 operators. Using small bore hoses and attachments, this portable system is ideal for microextraction and other close proximity applications.
- Compact design
- High vacuum pumps
- Low noise level
Approvals: UKCA and CE
Features

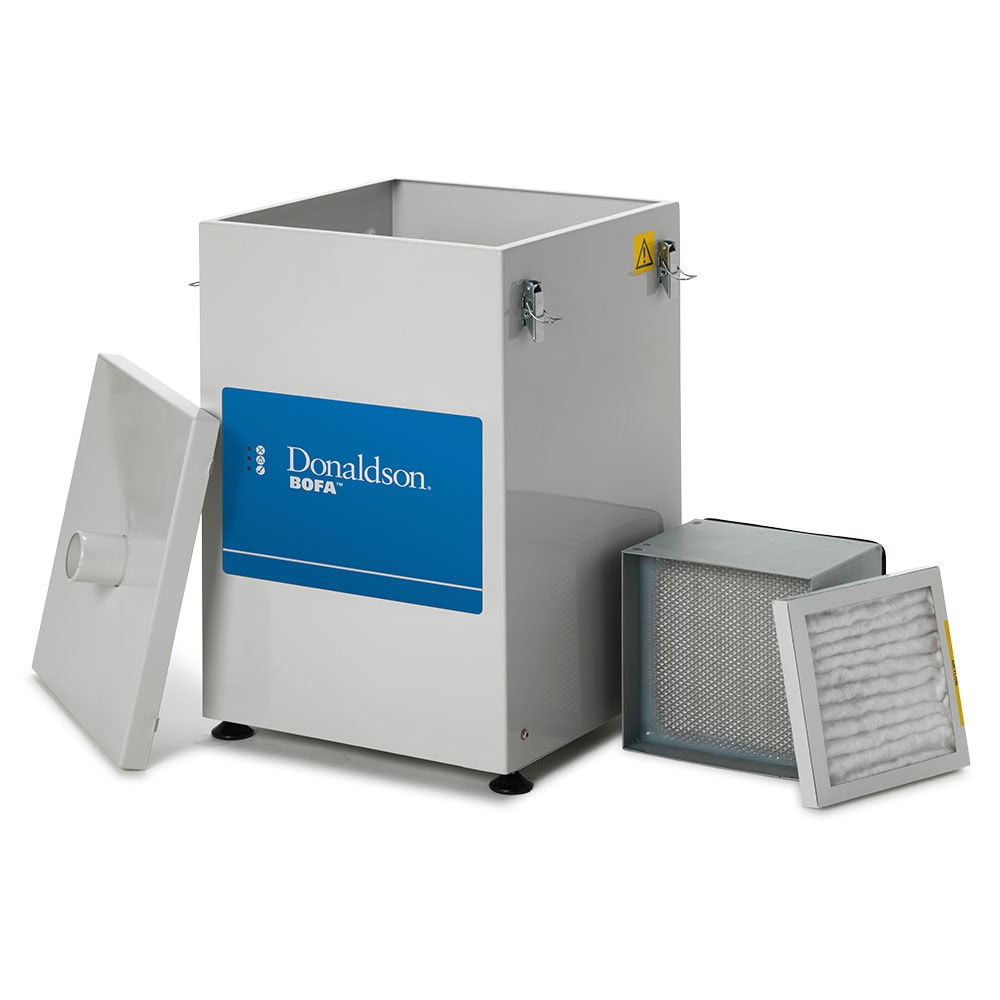

HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. As a secondary filtration stage, they capture fine particulate that pass through the pre-filter.
Advanced carbon filters
Our advanced carbon filters capture contaminants and odors to help reduce the risk of bypass and tunneling. We offer carbon filter options for different industries and contaminant-removal needs.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions (HxWxD) | 22.64 x 14.57 x 13.39” | 575 x 370 x 340 mm |
| Weight | 65 lbs | 29 kg |
| Airflow / Pressure | 22 l/min per tip | 22 l/min per tip |
| Noise level (at typical operating speed) | < 65 dBA | < 65 dBA |
| Cabinet construction | Powder-coated mild steel | Powder-coated mild steel |
Electrical data
| Voltage (V) | Frequency (Hz) | Current (A) |
|---|---|---|
| 115 | 50/60 | 2.7 |
| 230 | 50/60 | 6 |
Documentation
Product Inquiry
For more information about this product, please get in touch. Simply fill out the form, specify the system you’re interested in, and a member of the team will get back to you.
Filter Technology
We offer a variety of pre, main, and inline filters designed to effectively capture dust and particulate generated across a wide range of applications.
Smart Technology
At Donaldson BOFA, we have developed innovative technologies to help you manage your extraction systems effortlessly, reduce downtime, and enhance overall productivity.
SureCHECK
We uphold our quality standard through our unique SureCHECK process. We conduct rigorous testing and inspections on every product we make to ensure product integrity, reliability, and performance.
Contact Us
We’re here when you need us - get in touch today.
