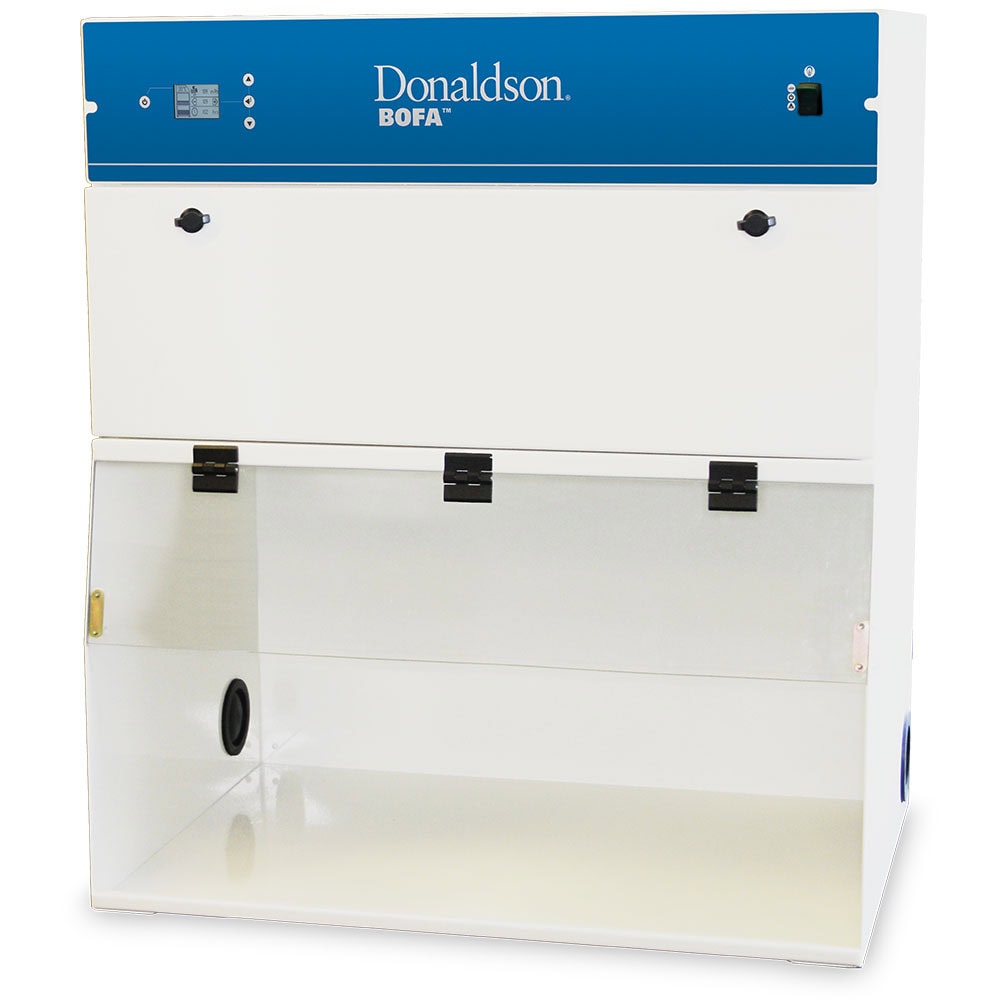

FumeCAB 1000 iQ

An integrated fume cabinet for a range of applications
Ideal For: Conformal coating, chemical control, gluing, potting, pathology, pipetting, powder weighing, spray drying, tablet pressing, hand working processes, hand soldering, lead-free soldering, monomer mixing, powder weighing and handling.

The FumeCAB 1000 iQ is an integrated fume cabinet suitable for a range of applications. As our largest FumeCAB model, it provides users with an extra depth of working space for taller applications. Ultra-bright, energy-saving LED lights make this system ideal for a variety of processes.

  • Long-life, low-cost replacement filters
  • High contrast display
  • Remote diagnostics via USB

Approvals: UKCA and CE

Features

iQ icon

Intelligent Operating System (iQ)

Our Intelligent Operating System (iQ) provides easy-to-access real-time data on your extraction system’s performance. It offers multiple performance enhancements, including improved extraction efficiency, individual filter status monitoring, and integrated design features designed to lower the cost of ownership.

HEPA icon

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns.  A secondary filter to remove fine particulate.

ACF Technology icon

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.

RFA Technology icon

Reverse flow air technology

Our reverse flow air technology reduces velocity and changes air direction, causing larger particulate to fall into the filter’s drop-out chamber. This decreases particulate entering the filter media, significantly enhancing filter capture performance, and extending filter life.

AFC Technology icon

Automatic flow control

Automatic flow control allows the user to pre-set the correct airflow rates for the specific application, subsequently helping to maintain the airflow. This generates lower noise levels and helps to protect the more expensive HEPA filters.

Conformal Coating icon

Conformal coating (optional)

A magnetic conformal coating protection.

UV Light icon

UV light (optional)

A UV light for conformal coating curing.

VOC Sensor icon

VOC sensor (optional)

Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.

Technical specification

ImperialMetric
Dimensions37.13 x 40.51 x 26.34"943 x 1029 x 669 mm
Weight264 lbs120 kg
Electrical data115 V 50/60 Hz Full load current: 10 amps230 V 50/60 Hz Full load current: 6 amps
Noise level (at typical operating speed)< 60 dBA< 60 dBA
Cabinet constructionPowder-coated mild steelPowder-coated mild steel
