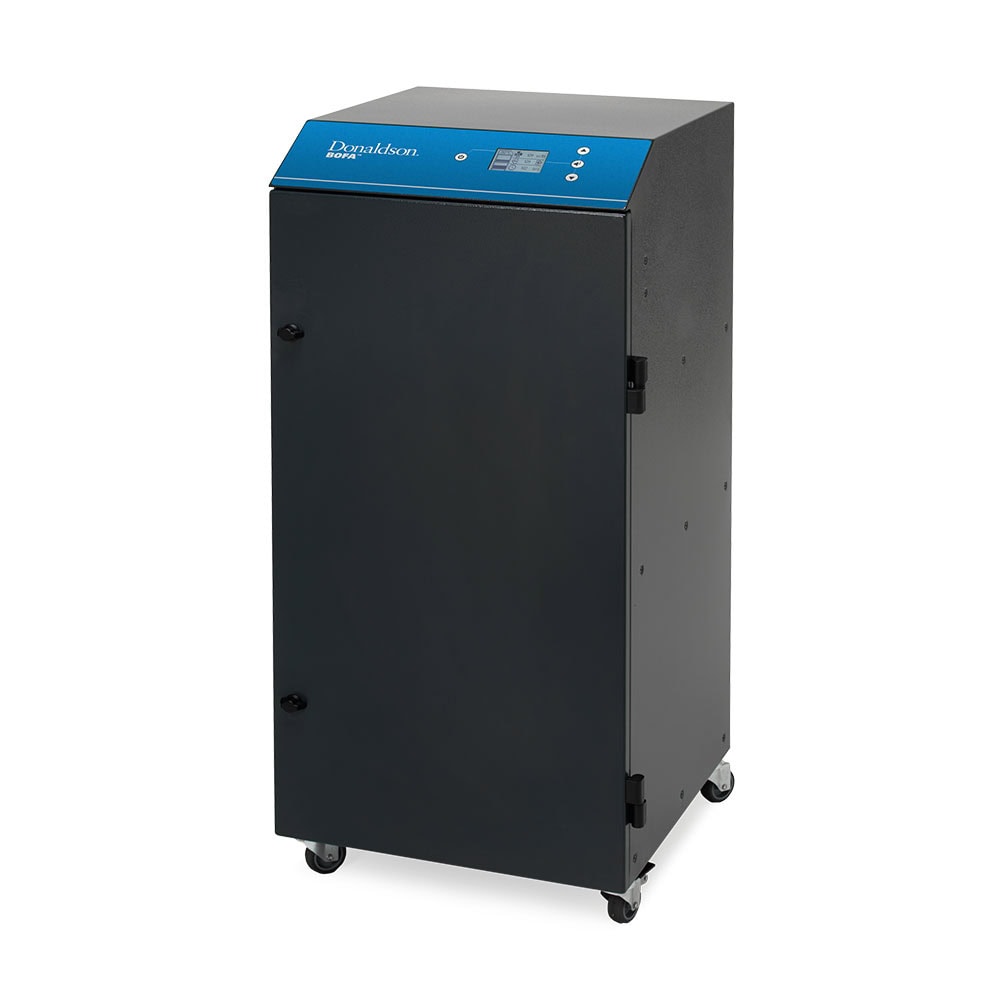

AD Oracle iQ

A mid-sized system for a range of laser applications
Ideal For: Selective laser melting, selective laser sintering, laser engraving, laser cutting, laser welding, laser coding and marking.

The AD Oracle iQ integrates a variety of features, including our Intelligent Operating System (iQ), into one unique system. This versatile system is suitable for a wide range of laser applications.

  • High contrast display
  • Real-time airflow reading
  • Independent filter condition monitoring
  • Blower with high airflow and pressure
  • Remote diagnostics via USB

Approvals: UKCA and CE | cUL | UL

Features

iQ icon

Intelligent Operating System (iQ)

Our Intelligent Operating System (iQ) provides easy-to-access real-time data on your extraction system’s performance. It offers multiple performance enhancements, including improved extraction efficiency, individual filter status monitoring, and integrated design features designed to lower the cost of ownership.

DeepPleat DUO icon

DeepPleat DUO pre-filter

Our DeepPleat DUO pre-filter is designed to maximize filter life. It incorporates a large capacity drop-out chamber within the filter which is designed to act as a pre-separator helping to extend the life of the pre-filter which in turn protects against the premature blocking of the HEPA filter.

HEPA icon

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns.  A secondary filter to remove fine particulate.

ACF Technology icon

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.

RFA Technology icon

Reverse flow air technology

Our reverse flow air technology reduces velocity and changes air direction, causing larger particulate to fall into the filter’s drop-out chamber. This decreases particulate entering the filter media, significantly enhancing filter capture performance, and extending filter life.

AFC Technology icon

Automatic flow control

Automatic flow control allows the user to pre-set the correct airflow rates for the specific application, subsequently helping to maintain the airflow. This generates lower noise levels and helps to protect the more expensive HEPA filters.

Multi Voltage Sensing Unit icon

Multi-voltage sensing

Automatically senses the local voltage and adjusts accordingly.

System OK icon

System OK signal (optional)

Our system OK signal alerts you when there is a fault, when filters are blocked, and when filters are approaching full capacity, allowing you to schedule maintenance efficiently.

Compressor icon

Onboard compressor (optional)

Our onboard compressor is designed to provide the laser with its air supply requirements. Unlike standalone air compressors, our onboard compressor sits inside the extraction system for a simpler, more compact installation.

VOC Sensor icon

VOC sensor (optional)

Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.

Technical specification

ImperialMetric
Dimensions38.39 x 17.52 x 19.88”975 x 455 x 505 mm
Weight143 lbs65 kg
Airflow / Pressure224 cfm / 96 mbar380 m³/hr / 96 mbar
Electrical dataVoltage: 115-230 V Frequency: 50/60 Hz
Full load current: 12.5 amps
Voltage: 115-230 V Frequency: 50/60 Hz
Full load current: 12.5 amps
Noise level (at typical operating speed)< 70 dBA< 70 dBA
Cabinet constructionBrushed stainless steel / powder-coated mild steelBrushed stainless steel / powder-coated mild steel
