AD 1500 iQ Dual Arms

A mobile dual-arm system for heavy-duty laser applications
Ideal For: Laser welding, laser engraving, adhesives, organic solvent processes, laser marking, soldering, laser cleaning, welding processes*.

Launching February 2025

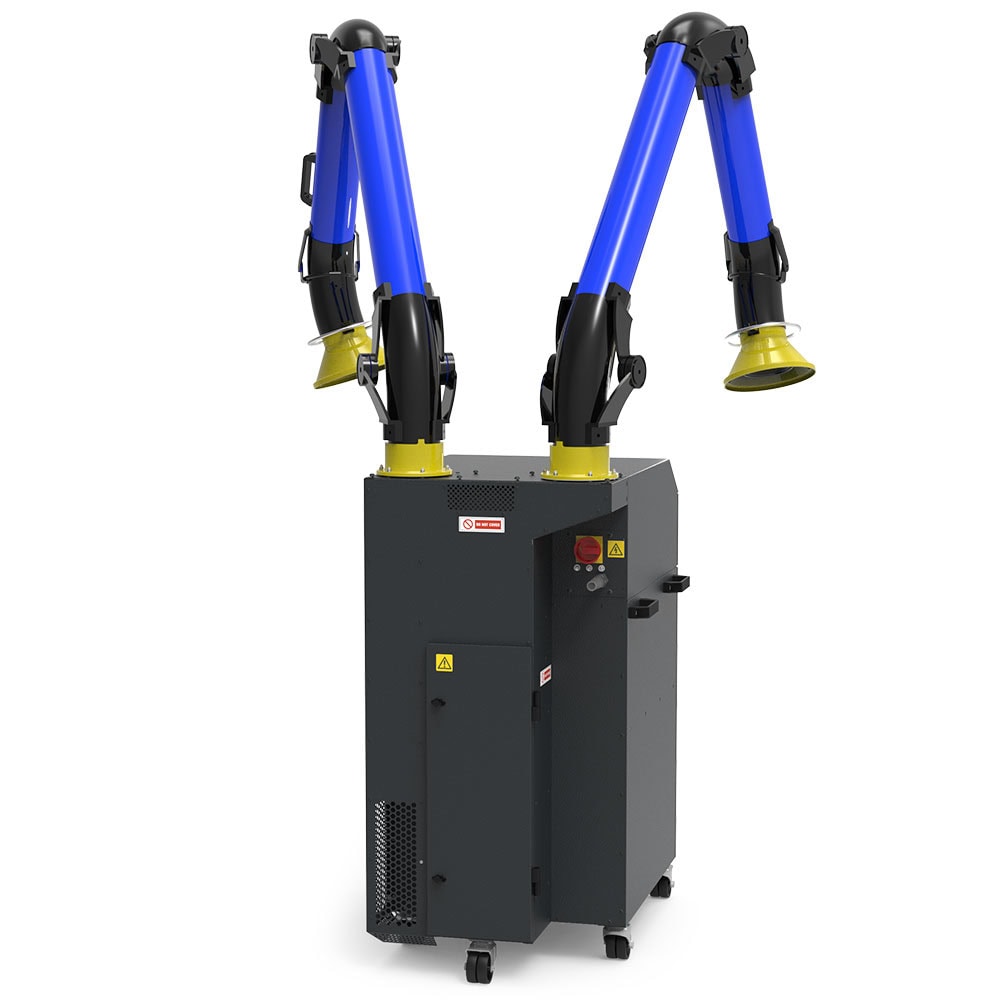

The AD 1500 iQ Dual Arms is a powerful, mobile fume extraction system designed for heavy-duty laser applications. Building upon the established AD 1500 iQ extraction system, it features dual articulated arms with a reach of over 6 feet (2 metres)** and an integrated spark arrestor for enhanced safety and performance.

  • Dual articulated arms
  • Integrated spark arrestor
  • Real-time airflow reading
  • Independent filter condition monitoring
  • High contrast display
  • Remote diagnostics via USB
  • Long-life, low-cost replacement filters
  • Extended exhaust box to help reduce noise and air dispersion
  • Adjustable arm valves for precise airflow control

Approvals: UKCA and CE

* This system is not suitable for filtering NOx. Please consider this in your risk assessment.
** Arms are fixed to rotate no more than 180°.

Features

iQ icon

Intelligent Operating System (iQ)

Our Intelligent Operating System (iQ) provides easy-to-access real-time data on your extraction system’s performance. It offers multiple performance enhancements, including improved extraction efficiency, individual filter status monitoring, and integrated design features designed to lower the cost of ownership.

DeepPleat DUO icon

DeepPleat DUO pre-filter

Our DeepPleat DUO pre-filter is designed to maximize filter life. It incorporates a large capacity drop-out chamber within the filter which is designed to act as a pre-separator helping to extend the life of the pre-filter which in turn protects against the premature blocking of the HEPA filter.

HEPA icon

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns.  A secondary filter to remove fine particulate.

ACF Technology icon

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.

RFA Technology icon

Reverse flow air technology

Our reverse flow air technology reduces velocity and changes air direction, causing larger particulate to fall into the filter’s drop-out chamber. This decreases particulate entering the filter media, significantly enhancing filter capture performance, and extending filter life.

AFC Technology icon

Automatic flow control

Automatic flow control allows the user to pre-set the correct airflow rates for the specific application, subsequently helping to maintain the airflow. This generates lower noise levels and helps to protect the more expensive HEPA filters.

Technical specification

ImperialMetric
Dimensions47.4 x 27.2 x 37.5”1205 x 692 x 952 mm
Weight529.1 lbs240 kg
Airflow / Pressure677 cfm / 86 mbar1150 m³/hr / 86 mbar
Electrical data415 V 3 ph 50/60 Hz Full load current: 8.5A Ph / 14.5 A N415 V 3 ph 50/60 Hz Full load current: 8.5A Ph / 14.5 A N
Noise level (at typical operating speed)< 80 dBA< 80 dBA
Cabinet constructionPowder-coated mild steelPowder-coated mild steel
