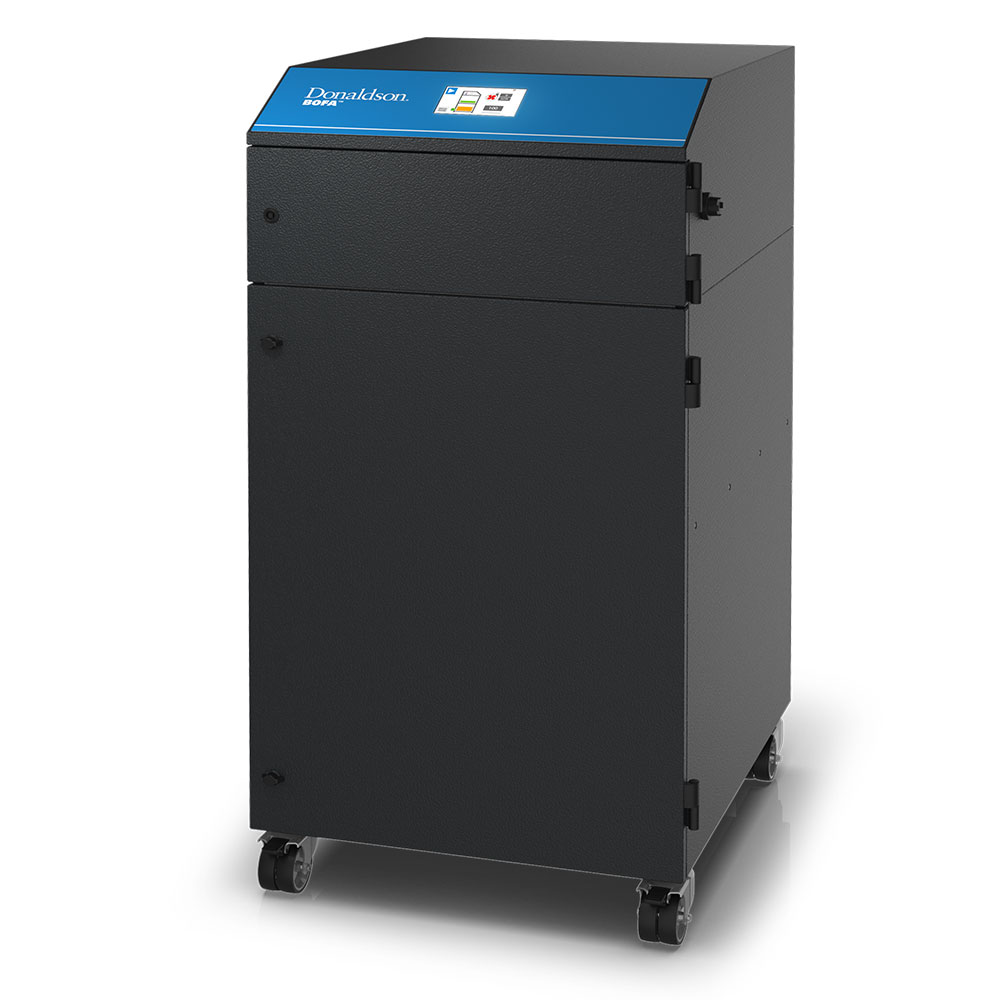

AD 1000 Pro OS Connect

A system for medium to heavy-duty laser applications
Ideal For: Laser welding, selective laser sintering, selective laser melting, laser engraving, laser cutting, laser coding and marking.

The AD 1000 Pro OS Connect fume extraction system is an ideal choice for applications that generate high levels of particulate. Equipped with our new, innovative Pro OS software platform, this intuitive system takes productivity to the next level.

  • Two-way data stream
  • Color touch screen
  • Real-time system status
  • Multi-language software
  • Customizable branding
  • Filter life monitor
  • Pressure sensors
  • Alarm configurations
  • USB lock screen

Approvals: UKCA, CE and UL

Features

Pro OS

Pro OS

Our intuitive Pro OS software platform with two-way data connectivity* delivers advanced features to boost your productivity like never before. The user-friendly color touchscreen provides real-time insights into usage, filter status, and system pressure, helping to optimize efficiency and reduce downtime.

*Available on selected Pro OS models

DeepPleat DUO icon

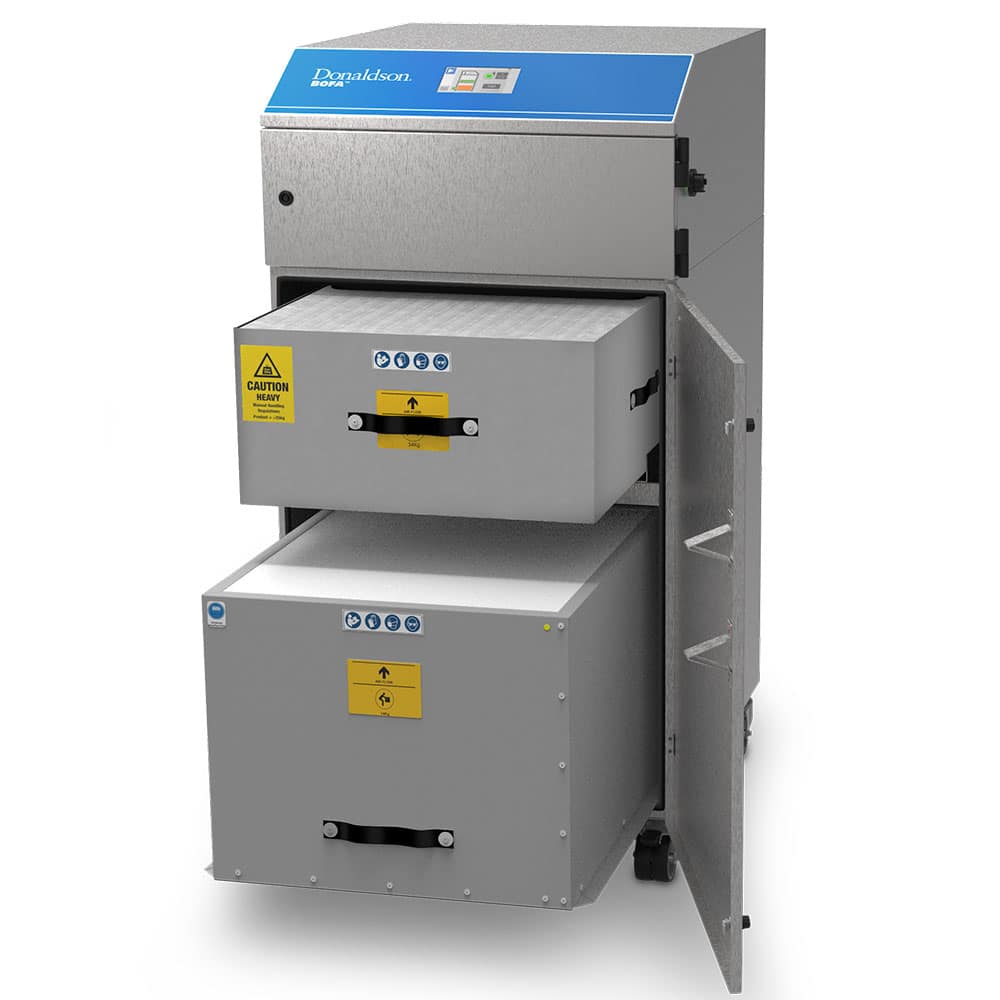

DeepPleat DUO pre-filter

Our DeepPleat DUO pre-filter is designed to maximize filter life. It incorporates a large capacity drop-out chamber within the filter which is designed to act as a pre-separator helping to extend the life of the pre-filter which in turn protects against the premature blocking of the HEPA filter.

HEPA icon

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns.  A secondary filter to remove fine particulate.

ACF Technology icon

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.

RFA Technology icon

Reverse flow air technology

Our reverse flow air technology reduces velocity and changes air direction, causing larger particulate to fall into the filter’s drop-out chamber. This decreases particulate entering the filter media, significantly enhancing filter capture performance, and extending filter life.

AFC Technology icon

Automatic flow control

Automatic flow control allows the user to pre-set the correct airflow rates for the specific application, subsequently helping to maintain the airflow. This generates lower noise levels and helps to protect the more expensive HEPA filters.

System OK icon

System OK signal

Our system OK signal alerts you when there is a fault, when filters are blocked, and when filters are approaching full capacity, allowing you to schedule maintenance efficiently.

Remote stop-start icon

Remote stop/start signal (optional)

Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.

VOC Sensor icon

VOC sensor

Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.

Technical specification

ImperialMetric
Dimensions47.4 x 24.6 x 31.7”1205 x 625 x 805 mm
Weight309 lbs140 kg
Airflow / Pressure515 cfm / 60 mbar875 m³/hr / 60 mbar
Electrical data115 V 50/60 Hz and 230 V 50 Hz Full load current: 115 V 19.5 A, 230 V 12.8 A115 V 50/60 Hz and 230 V 50 Hz Full load current: 115 V 19.5 A, 230 V 12.8 A
Noise level (at typical operating speed)< 70 dBA< 70 dBA
Cabinet constructionBrushed stainless steel / powder-coated mild steelBrushed stainless steel / powder-coated mild steel

Documentation

Product Inquiry

Contact us to find out how Pro OS can boost your performance like never before.

Simply fill out the form, and a member of the team will get back to you.
