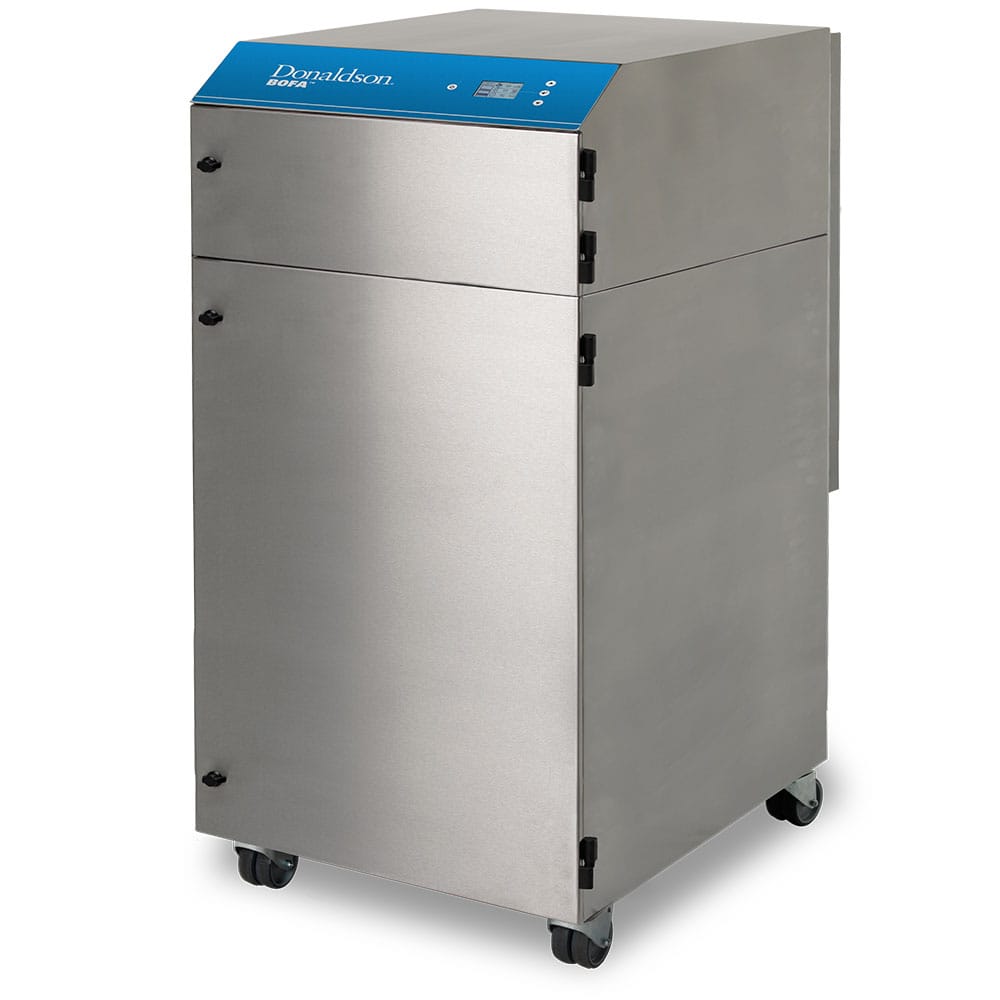

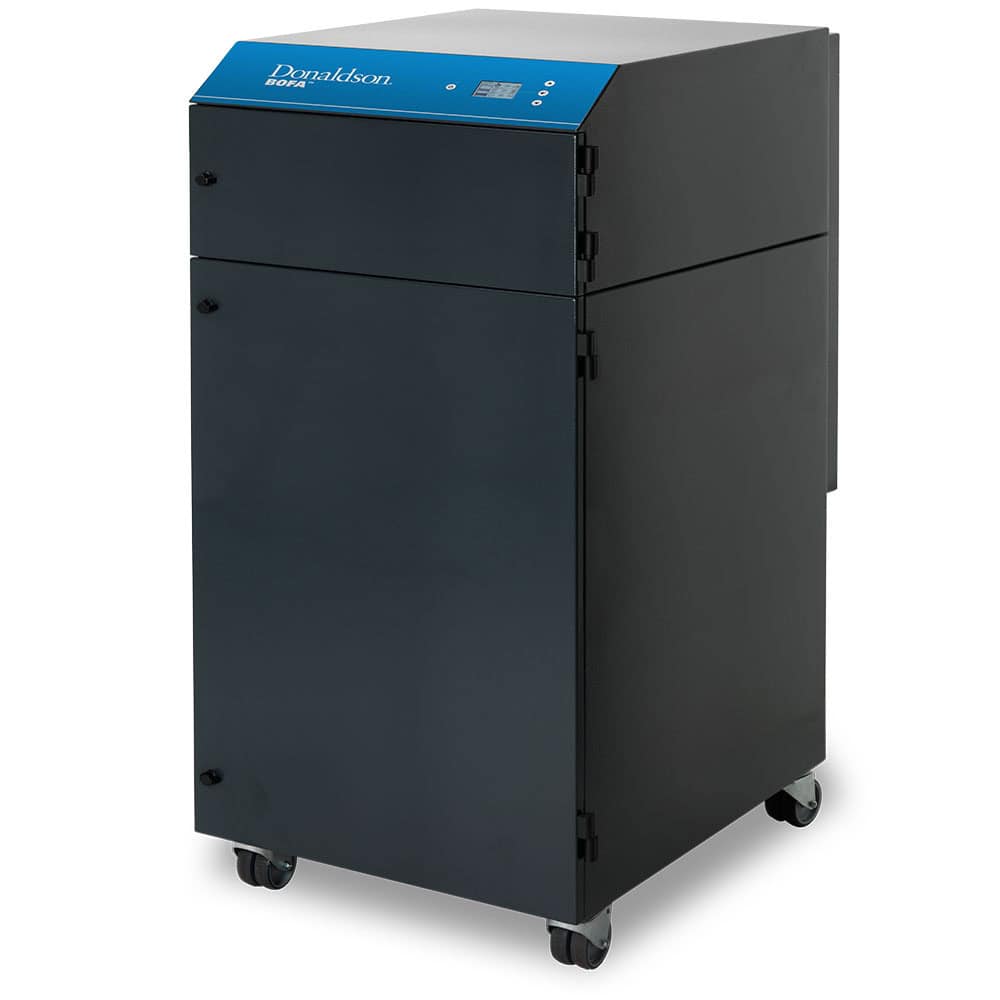

V 1000 iQ

A high-volume extraction system for soldering applications
Ideal For: Automated soldering, brazing, hand soldering.

The V 1000 iQ fume extraction system is an ideal choice for heavy-duty hand and machine-automated solder applications that generate large amounts of particulate and gaseous organic compounds. It can cater to up to 15 operators as a centralized system.

  • High airflow and pressure rates
  • Real-time airflow reading
  • High contrast display
  • Remote diagnostics via USB
  • Independent filter condition monitoring
  • Long-life, low-cost replacement filters

Approvals: UKCA and CE | cUL | UL

Features

iQ icon

Intelligent Operating System (iQ)

Our Intelligent Operating System (iQ) provides easy-to-access real-time data on your extraction system’s performance. It offers multiple performance enhancements, including improved extraction efficiency, individual filter status monitoring, and integrated design features designed to lower the cost of ownership.

DeepPleat DUO icon

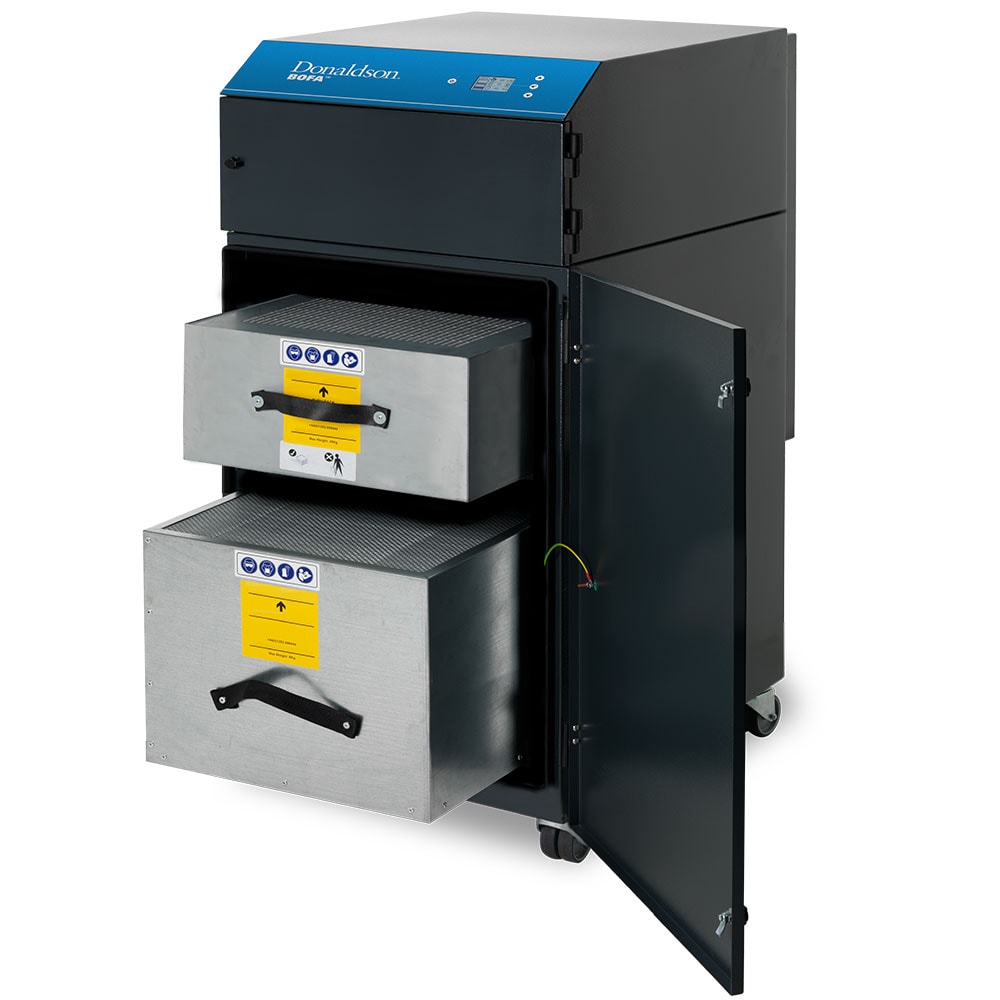

DeepPleat DUO pre-filter

Our DeepPleat DUO pre-filter is designed to maximize filter life. It incorporates a large capacity drop-out chamber within the filter which is designed to act as a pre-separator helping to extend the life of the pre-filter which in turn protects against the premature blocking of the HEPA filter.

HEPA icon

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns.  A secondary filter to remove fine particulate.

ACF Technology icon

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.

RFA Technology icon

Reverse flow air technology

Our reverse flow air technology reduces velocity and changes air direction, causing larger particulate to fall into the filter’s drop-out chamber. This decreases particulate entering the filter media, significantly enhancing filter capture performance, and extending filter life.

AFC Technology icon

Automatic flow control

Automatic flow control allows the user to pre-set the correct airflow rates for the specific application, subsequently helping to maintain the airflow. This generates lower noise levels and helps to protect the more expensive HEPA filters.

Compressor icon

Onboard compressor (optional)

Our onboard compressor is designed to provide the laser with its air supply requirements. Unlike standalone air compressors, our onboard compressor sits inside the extraction system for a simpler, more compact installation.

Remote stop-start icon

Remote stop/start signal (optional)

Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.

VOC Sensor icon

VOC sensor (optional)

Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.

Technical specification

ImperialMetric
Dimensions47.44 x 24.41 x 31.10”1205 x 620 x 790 mm
Weight322 lbs147 kg
Airflow / Pressure500 cfm / 100 mbar850 m³/hr / 100 mbar
Electrical data115 V 60/50 Hz
Full load current: 19.5 amps / 2.2 kw

230 V 1 ph 50/60 Hz
Full load current: 12.8 amps / 2.2 kw
Noise level (at typical operating speed)< 63 dBA< 63 dBA
Cabinet constructionPowder-coated mild steelPowder-coated mild steel
