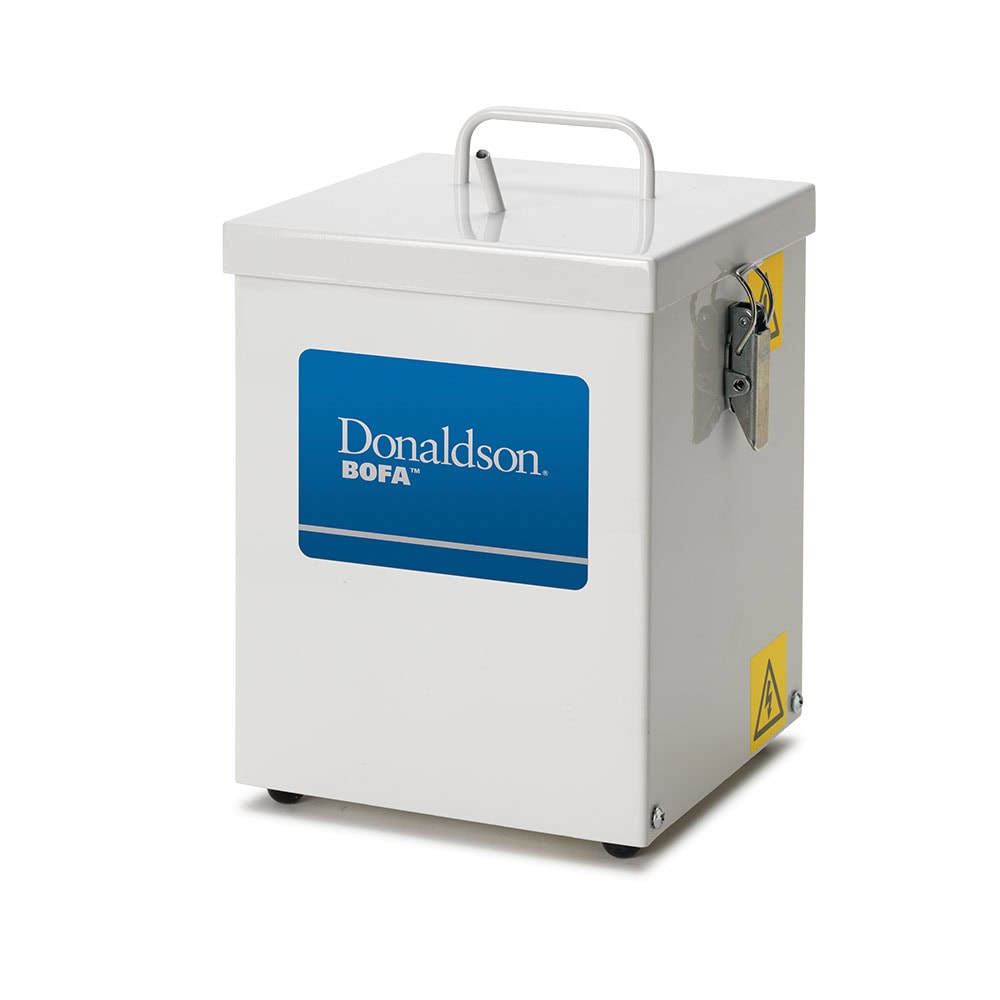

T 1

A single-operator extraction system for hand soldering applications
Ideal For: Hand soldering, lead-free soldering.

The T 1 extraction system is designed to filter fumes and debris from a single-hand soldering application. Using small bore hoses and attachments, this portable system is ideal for applications that require close proximity, such as microextraction.

  • Compact design
  • High vacuum pumps
  • Low noise level

Approvals: UKCA and CE

Features

HEPA icon

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns.  A secondary filter to remove fine particulate.

ACF Technology icon

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.

Technical specification

ImperialMetric
Dimensions10.63 x 7.87 x 7.28”270 x 200 x 185 mm
Weight11 lbs5 kg
Airflow / Pressure22 l/min per tip22 l/min per tip
Electrical data115 V 60/50 Hz
Full load current: 0.46 amps / 32 w
230 V 1 ph 50/60 Hz
Full load current: 0.25 amps / 40 w
Noise level (at typical operating speed)< 56 dBA< 56 dBA
Cabinet constructionPowder-coated mild steelPowder-coated mild steel

Documentation

Product Inquiry

For more information about this product, please get in touch. Simply fill out the form, specify the system you’re interested in, and a member of the team will get back to you.

BOFA support team member

Filter Technology

We offer a variety of pre, main, and inline filters designed to effectively capture dust and particulate generated across a wide range of applications.

Smart Technology

Our Intelligent Operating System (iQ) provides easy-to-access real-time data on your extraction system’s performance. It provides improved extraction efficiency, individual filter status monitoring, and integrated design features.

SureCHECK

We uphold our quality standard through our unique SureCHECK process. We conduct rigorous testing and inspections on every product we make to ensure product integrity, reliability, and performance.
