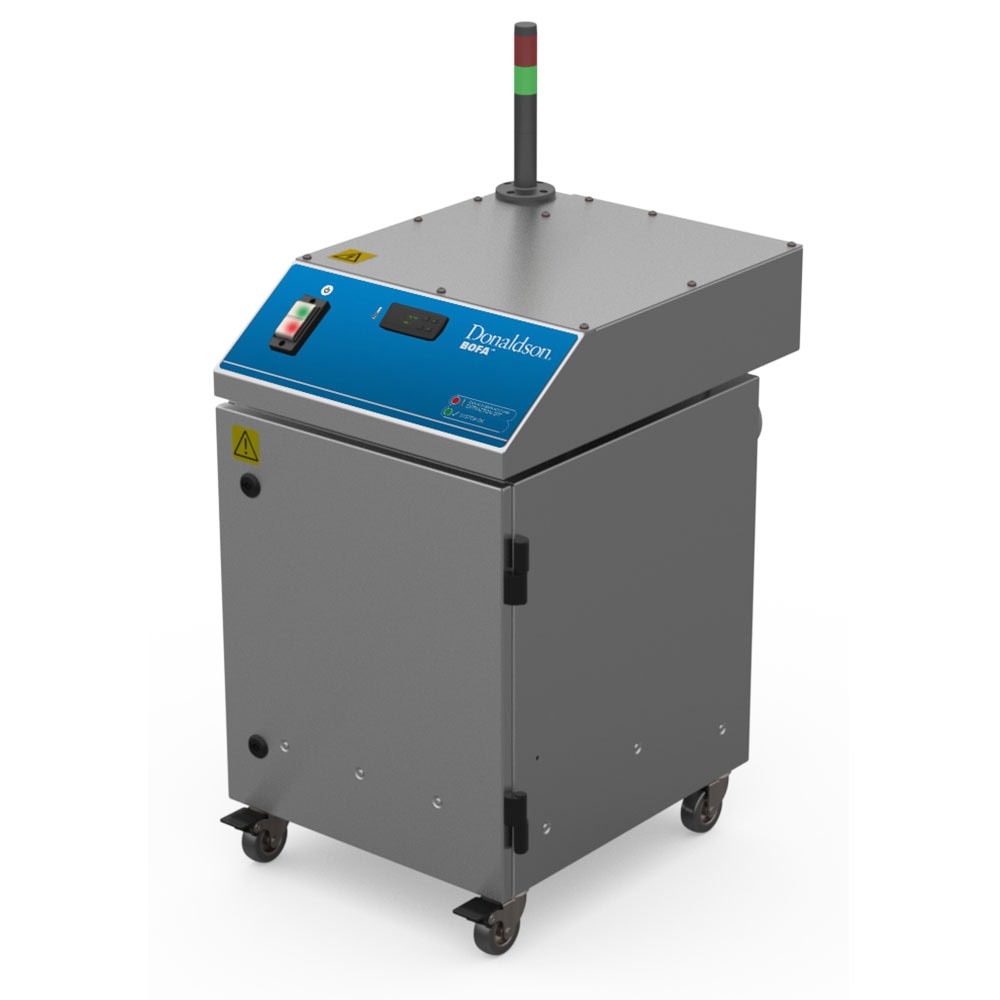

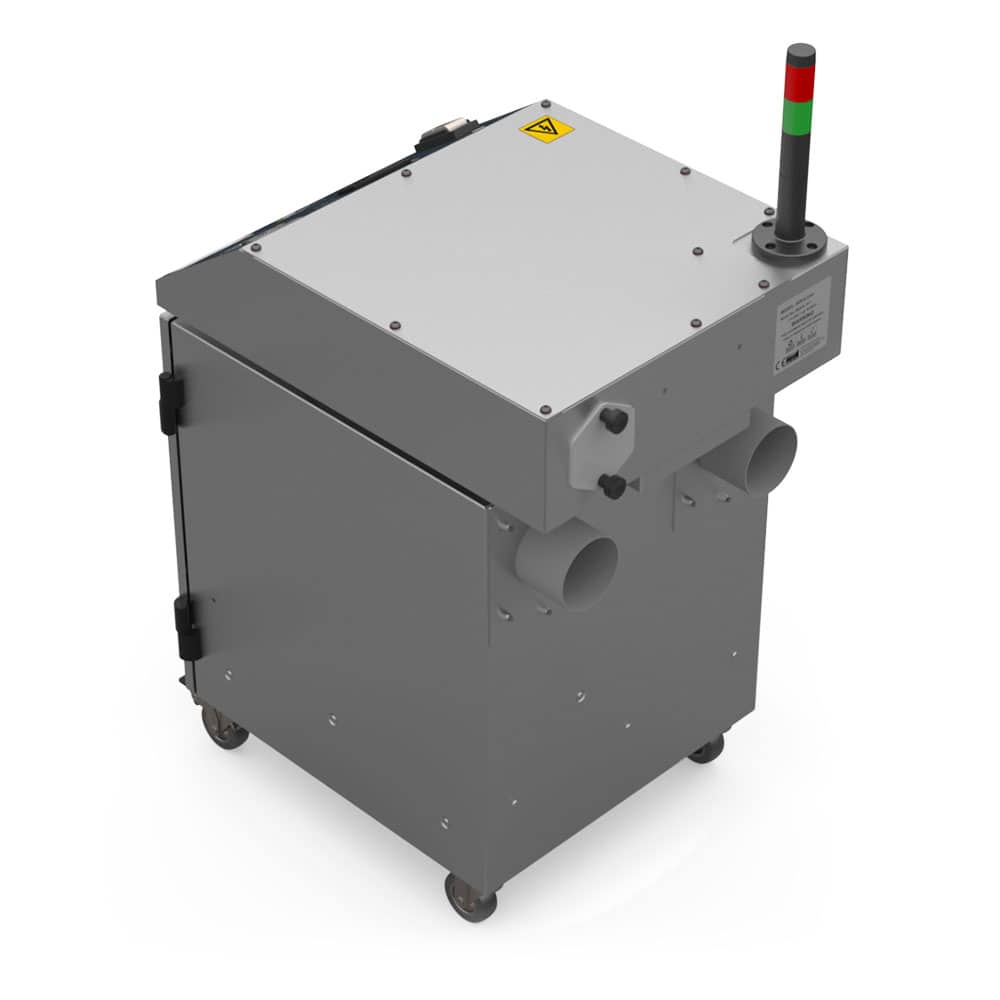

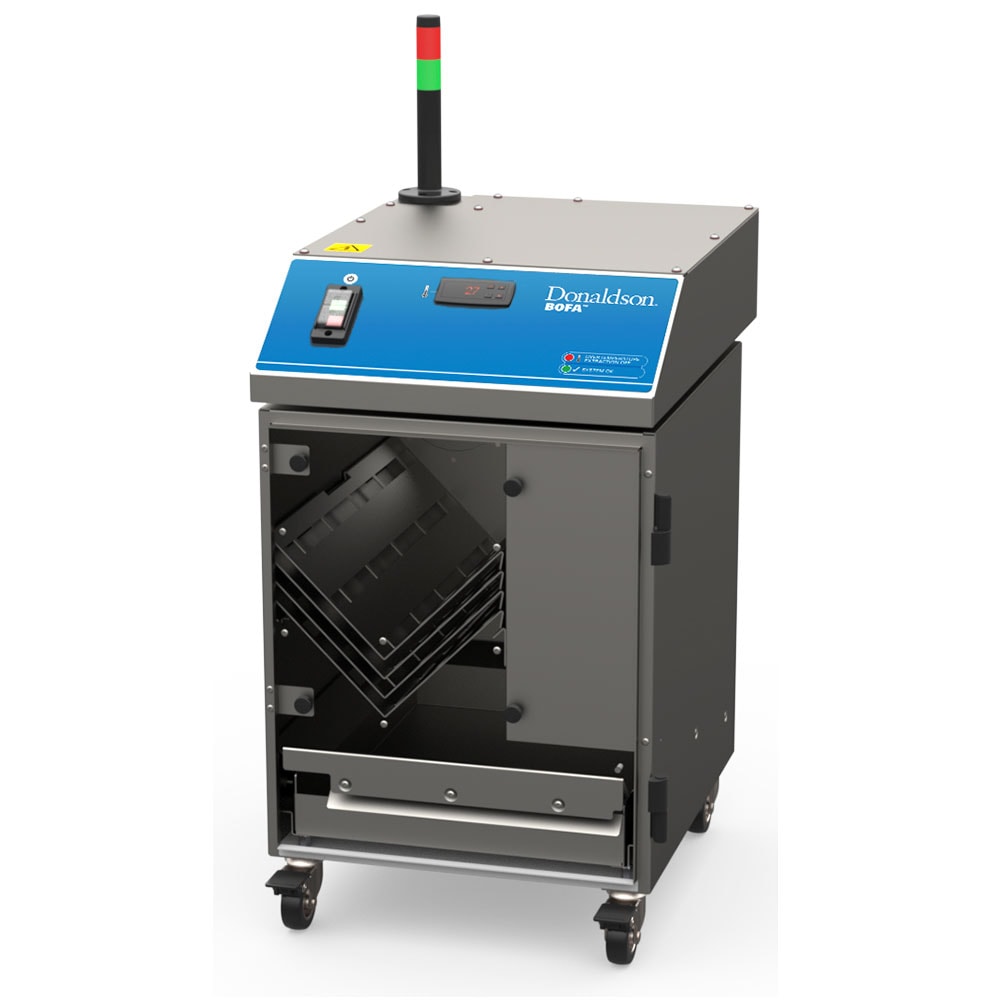

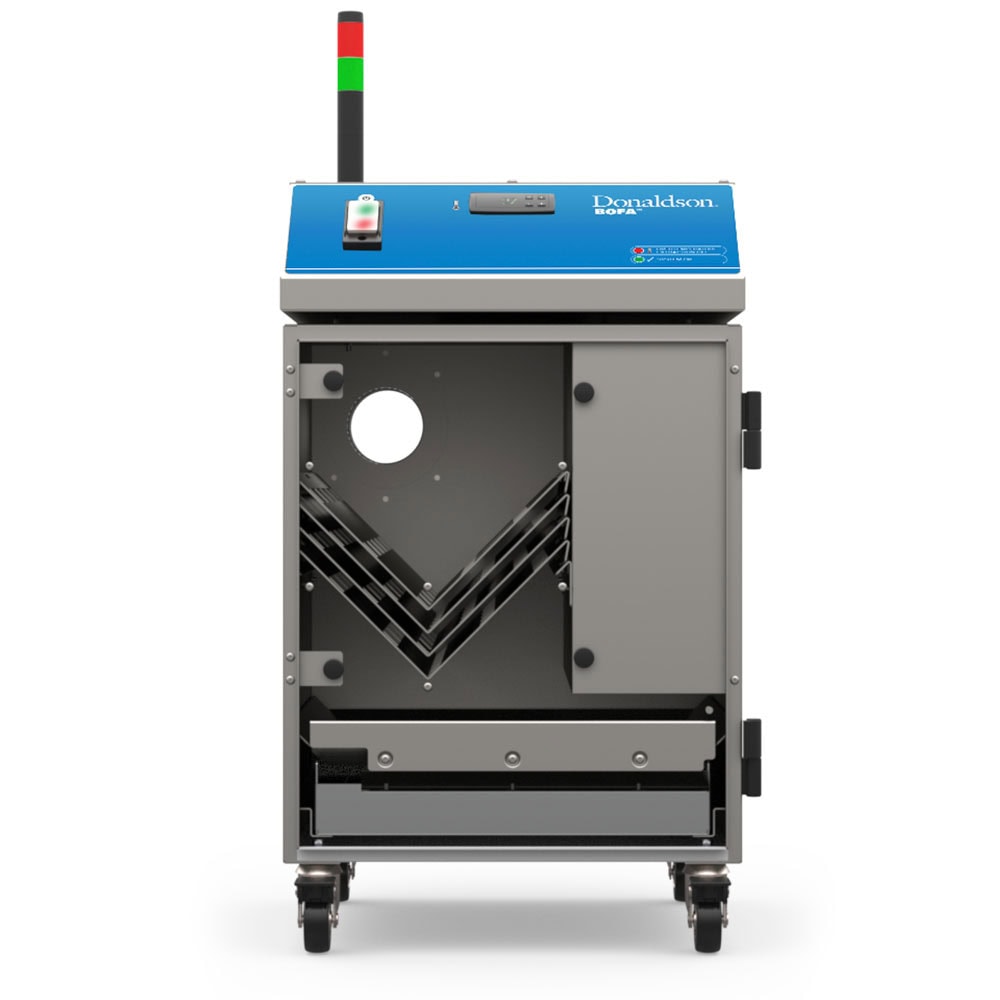

Spark Arrestor 2

A spark reduction system for laser processes
Ideal For: Laser coding, laser marking, laser cutting, laser welding, laser machining, laser engraving.

The Spark Arrestor 2 is a spark reduction system developed to help reduce fire risks in laser processes. It is designed to prevent potentially damaging particulate from entering the fume extraction system. If the temperature sensor inside the Spark Arrestor 2 detects a 18°F (10°C) rise above the ambient, it will sound an alarm and cut power to the extractor.

  • Reduces fire risk
  • Intercepts ignition sources
  • Thermal flow cut-out

Approvals: UKCA and CE

Technical specification

ImperialMetric
Dimensions26.38 x 16.34 x 21.06”670 x 415 x 535 mm
Weight90 lbs41 kg
Electrical data100-230 VAC 1ph
Full load current: 0.5 amps
100-230 VAC 1ph
Full load current: 0.5 amps
Cabinet constructionBrushed stainless steelBrushed stainless steel
