PrintPRO Universal
PrintPRO Universal

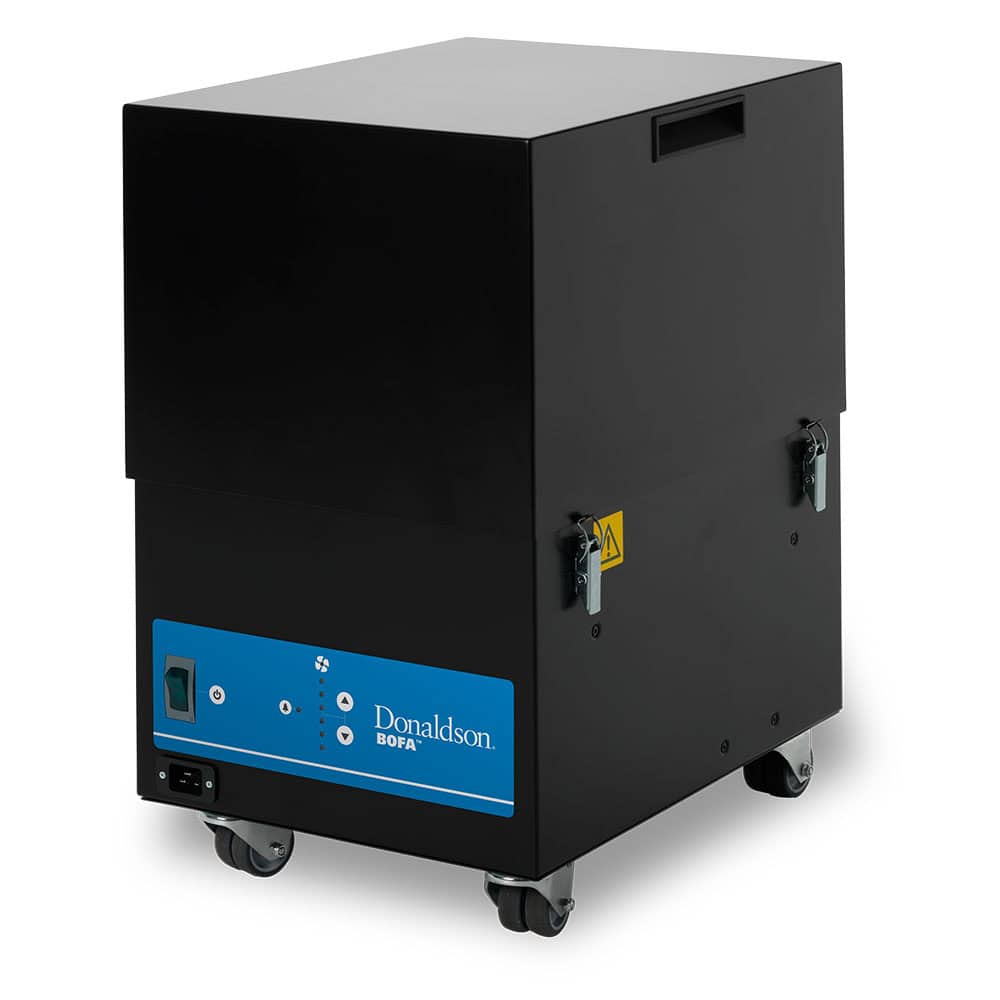

The PrintPRO Universal fume extraction system is a compact system for printing applications. Its large gas filter is designed to capture a range of solvents generated within printing environments, including MEK, ketones, and vapors from UV applications.
- Low noise level
- Small footprint
- Long-life, low-cost replacement filters
- High airflow rates
Approvals: UKCA and CE | cUL | UL
Features

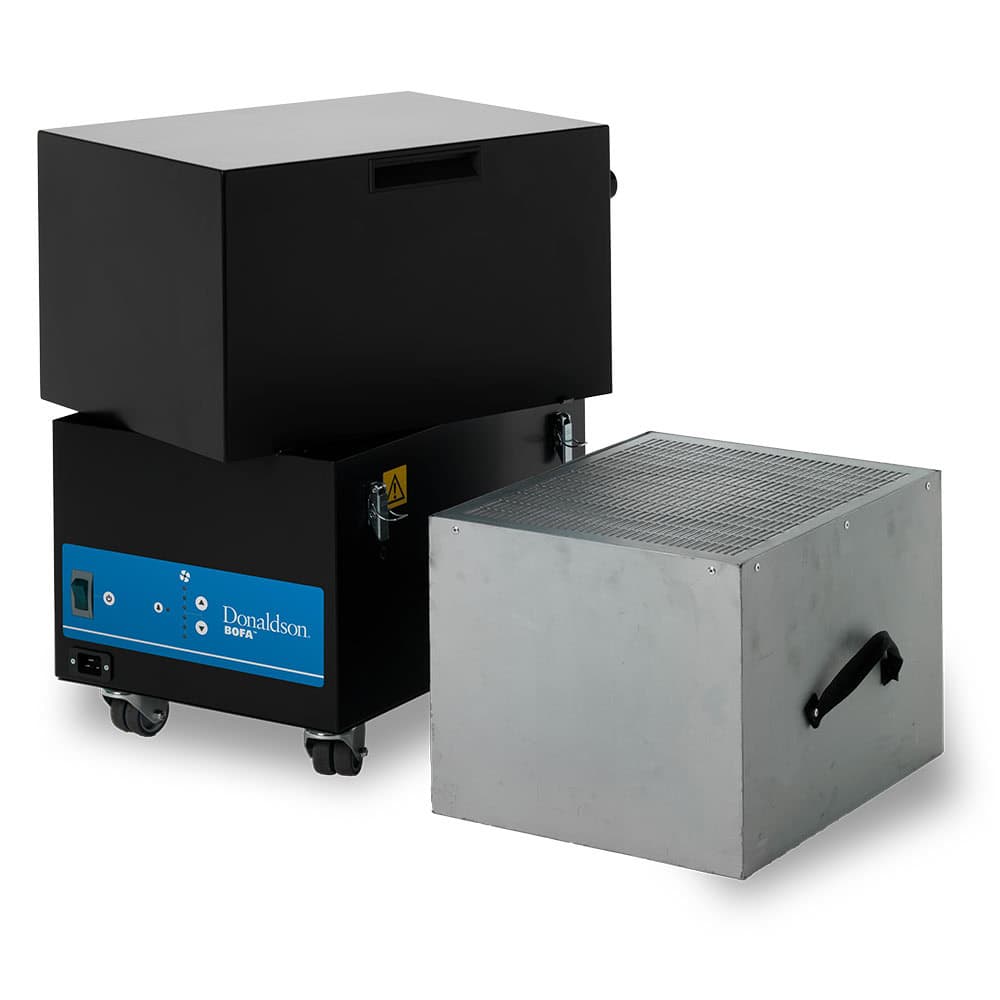

HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Multi-voltage sensing
Automatically senses the local voltage and adjusts accordingly.
Remote stop/start signal (optional)
Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
VOC sensor (optional)
Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.
Filter change signal (optional)
Our filter change signal alerts you when your filter is full and needs changing.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions | 24.61 x 15.16 x 20.67” | 625 x 385 x 525 mm |
| Weight | 113 lbs | 51 kg |
| Airflow / Pressure | 223 cfm / 96 mbar | 380 m³/hr / 96 mbar |
| Electrical data | 115-230 V 1 ph 50/60 Hz Full load current: 12.5 amps/ 1.1 kw | 115-230 V 1 ph 50/60 Hz Full load current: 12.5 amps/ 1.1 kw |
| Noise level (at typical operating speed) | < 68 dBA | < 68 dBA |
| Cabinet construction | Powder-coated mild steel | Powder-coated mild steel |
Documentation
Product Inquiry
For more information about this product, please get in touch. Simply fill out the form, specify the system you’re interested in, and a member of the team will get back to you.
Filter Technology
We offer a variety of pre, main, and inline filters designed to effectively capture dust and particulate generated across a wide range of applications.
Smart Technology
Our Intelligent Operating System (iQ) provides easy-to-access real-time data on your extraction system’s performance. It provides improved extraction efficiency, individual filter status monitoring, and integrated design features.
SureCHECK
We uphold our quality standard through our unique SureCHECK process. We conduct rigorous testing and inspections on every product we make to ensure product integrity, reliability, and performance.
