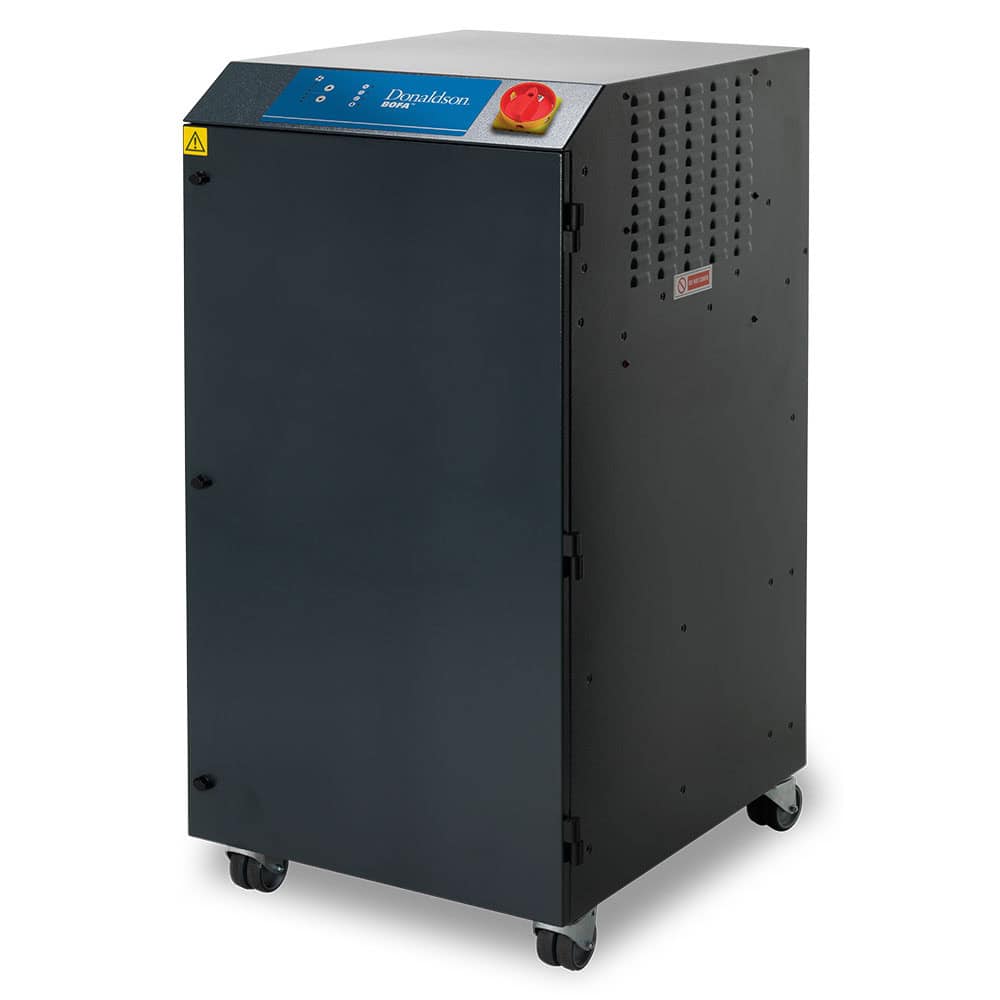

PrintPRO 800 DS
The PrintPRO 800 DS fume extraction system is designed to filter fumes from dye sublimation printers. Combining large filter capacity with high airflow and pressure, it is ideal for heavy-duty applications that produce significant amounts of gaseous organic compounds.
- Long-life, low-cost replacement filters
- High airflow rates
- Automatic fluid drain
Approvals: UKCA and CE
Features
HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Reverse flow air technology
Our reverse flow air technology reduces velocity and changes air direction, causing larger particulate to fall into the filter’s drop-out chamber. This decreases particulate entering the filter media, significantly enhancing filter capture performance, and extending filter life.
Automatic flow control
Automatic flow control allows the user to pre-set the correct airflow rates for the specific application, subsequently helping to maintain the airflow. This generates lower noise levels and helps to protect the more expensive HEPA filters.
Sponge filter
Our sponge filters are designed for dye sublimation printing. They filter oily vapors, allowing them to coalesce and drain out of the system, helping to extend filter life.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions (HxWxD) | 46.06 x 23.62 x 28.07” | 1170 x 600 x 713 mm |
| Weight | 341 lbs | 155 kg |
| Airflow / Pressure | 447 cfm / 96 mbar | 760 m³/hr / 96 mbar |
| Electrical data | 115-230 V 1 ph 50/60 Hz Full load current: 25 amps / 2.2 kw | 115-230 V 1 ph 50/60 Hz Full load current: 25 amps / 2.2 kw |
| Noise level (at typical operating speed) | < 68 dBA | < 68 dBA |
| Cabinet construction | Brushed stainless steel | Brushed stainless steel |
