AD PVC iQ

AD PVC iQ

A system designed to filter fumes generated during the lasering of PVC materials
Ideal For: PVC laser processing.

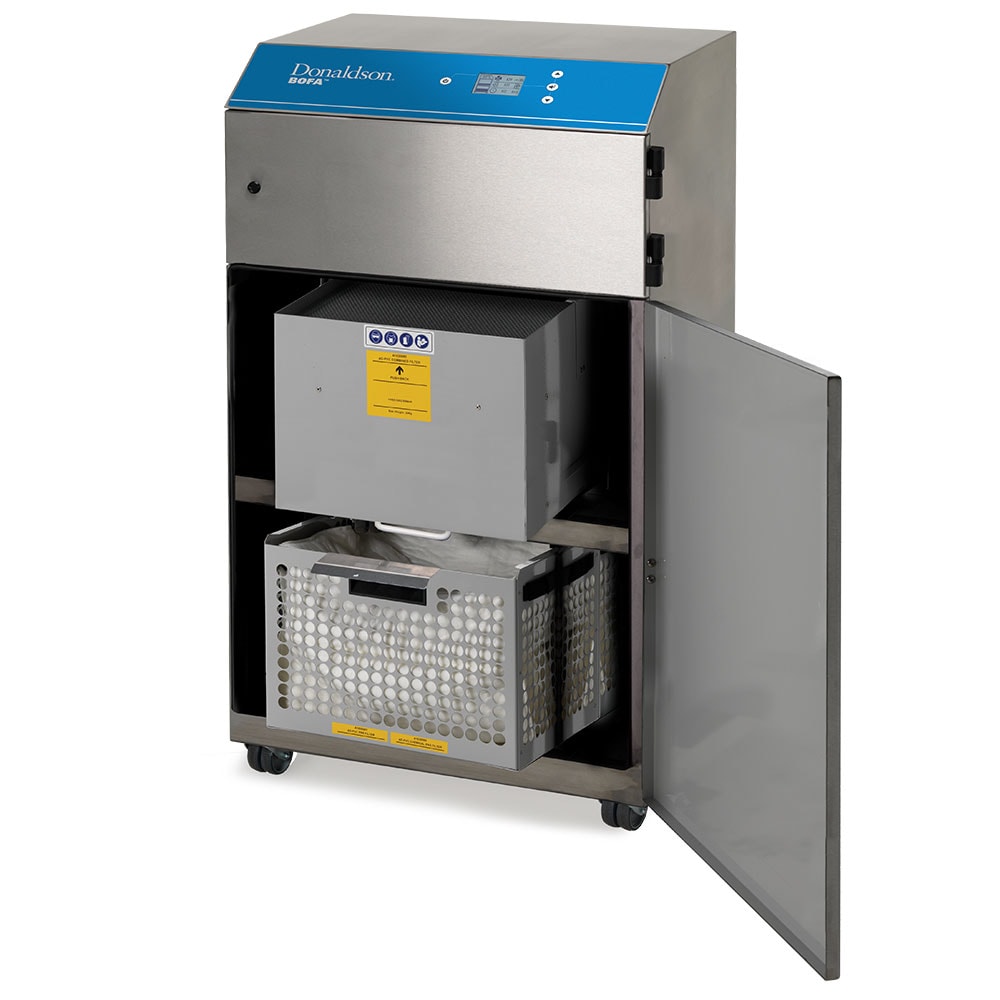

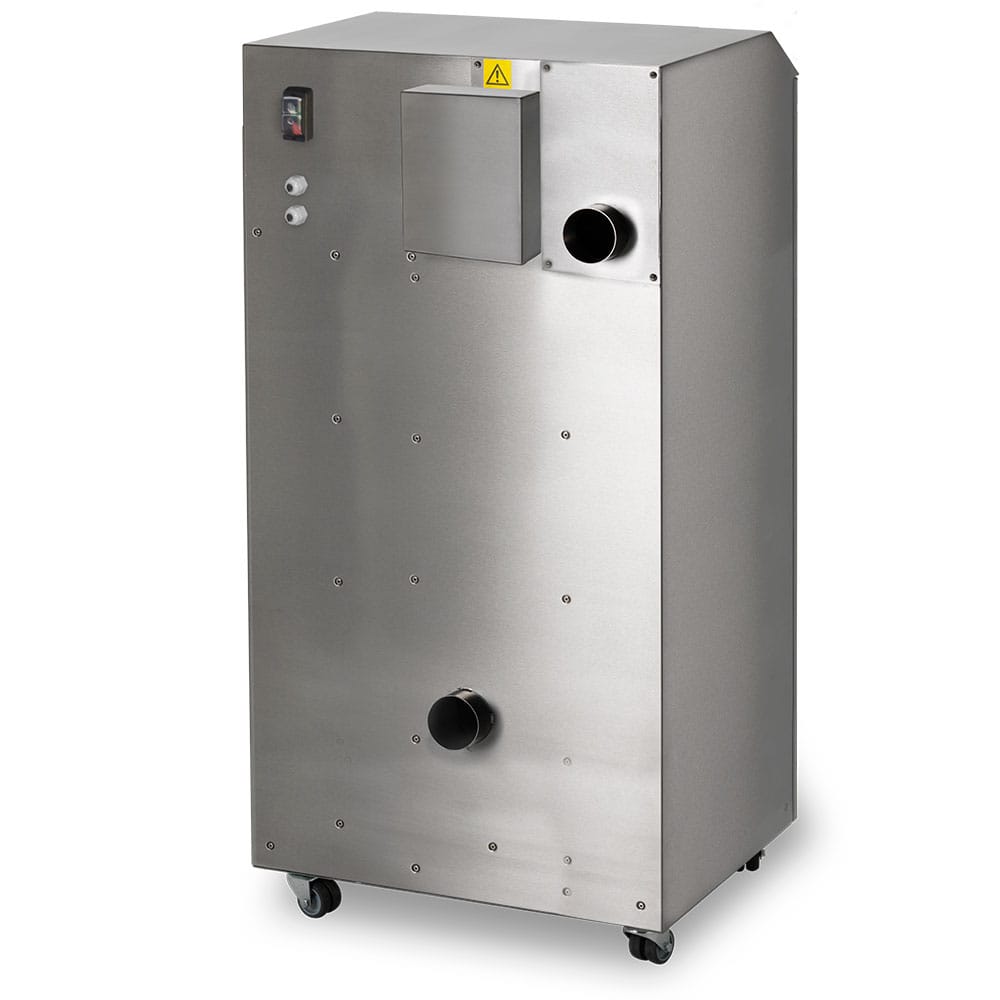

The AD PVC iQ extraction system is designed to filter fumes generated during the lasering of PVC materials. In addition to many of the standard features included in the AD Oracle iQ module, this system also comes equipped with HCl and VOC sensors that continuously monitor exhaust air, plus all internally exposed surfaces have been coated to resist corrosive fumes.

  • Turbine with high airflow and pressure
  • Acid resistant coatings
  • HCl and VOC gas sensors
  • Compact design
  • Low noise levels
  • High contrast display
  • Real-time airflow reading
  • Independent filter condition monitoring
  • Remote diagnostics via USB

Approvals: UKCA and CE | cUL | UL

Features

iQ icon

Intelligent Operating System (iQ)

Our Intelligent Operating System (iQ) provides easy-to-access real-time data on your extraction system’s performance. It offers multiple performance enhancements, including improved extraction efficiency, individual filter status monitoring, and integrated design features designed to lower the cost of ownership.

HEPA icon

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns.  A secondary filter to remove fine particulate.

ACF Technology icon

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.

RFA Technology icon

Reverse flow air technology

Our reverse flow air technology reduces velocity and changes air direction, causing larger particulate to fall into the filter’s drop-out chamber. This decreases particulate entering the filter media, significantly enhancing filter capture performance, and extending filter life.

AFC Technology icon

Automatic flow control

Automatic flow control allows the user to pre-set the correct airflow rates for the specific application, subsequently helping to maintain the airflow. This generates lower noise levels and helps to protect the more expensive HEPA filters.

Multi Voltage Sensing Unit icon

Multi-voltage sensing

Automatically senses the local voltage and adjusts accordingly.

System OK icon

System OK signal (optional)

Our system OK signal alerts you when there is a fault, when filters are blocked, and when filters are approaching full capacity, allowing you to schedule maintenance efficiently.

HCL sensor icon

HCl sensor

Our HCl (hydrochloric acid) sensor continuously monitors exhaust air and alerts you if HCl levels exceed the pre-set threshold, preventing the unwanted release of HCl and other nuisance odors.

Remote stop-start icon

Remote stop/start signal (optional)

Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.

VOC Sensor icon

VOC sensor (optional)

Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.

Technical specification

ImperialMetric
Dimensions42.91 x 22.44 x 23.62”1090 x 570 x 600 mm
Weight209 lbs95 kg
Airflow / Pressure206 cfm / 96 mbar350 m³/hr / 96 mbar
Electrical data115-230 V 1 ph50/60 Hz
Full load current: 12.5 amps / 1.1 kw
115-230 V 1 ph50/60 Hz
Full load current: 12.5 amps / 1.1 kw
Noise level (at typical operating speed)< 60 dBA< 60 dBA
Cabinet constructionBrushed stainless steel with epoxy coated internal contact partsBrushed stainless steel with epoxy coated internal contact parts
