AD 350

AD 350

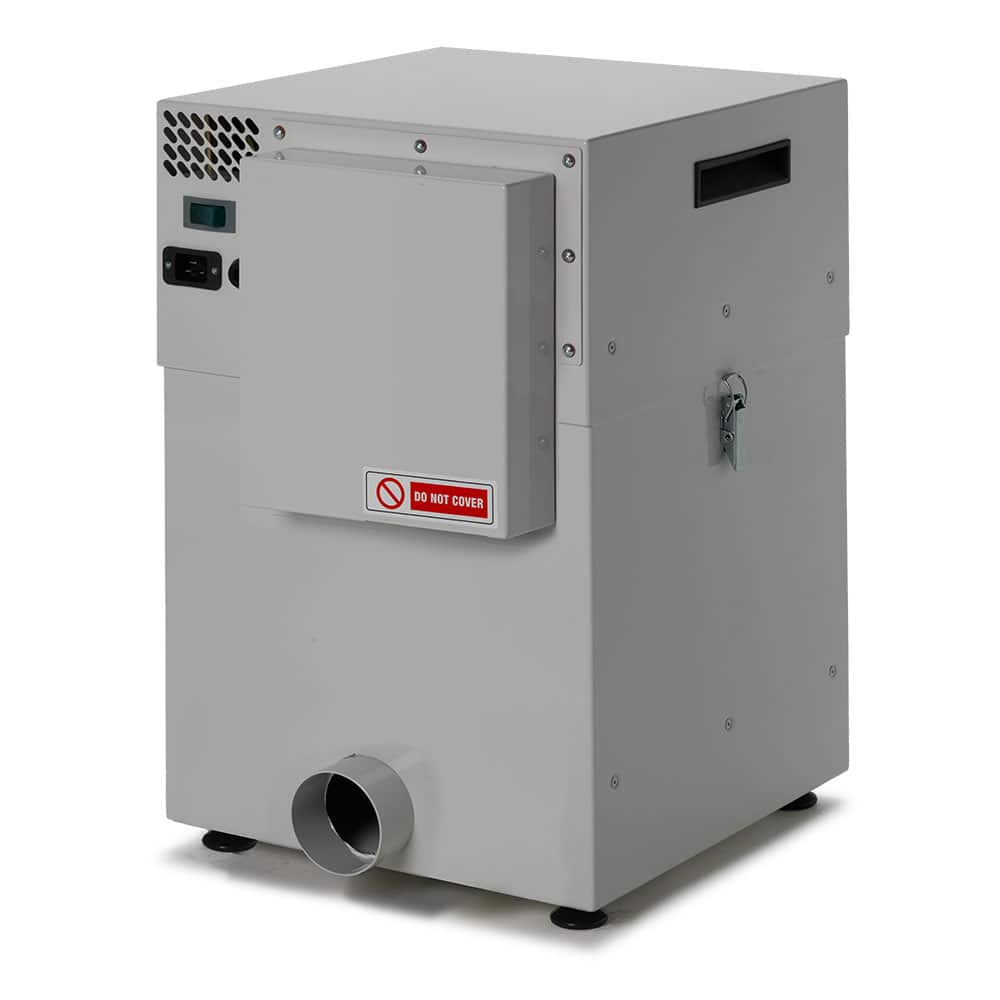

A compact system for light-duty laser applications
Ideal For: Laser engraving, laser cutting, laser coding and marking.

The AD 350 is a compact extraction system designed to filter fumes and particulate created during light-duty applications. The system helps to protect equipment, maintain quality, and reduce the number of rejects and contaminants.

  • Low noise levels
  • Small footprint
  • Long-life, low-cost replacement filters

Approvals: UKCA and CE | cUL | UL

Features

DeepPleat icon

DeepPleat pre-filter

The DeepPleat pre-filter consists of a pleated filter allowing for increased surface area within a smaller volume. This means Donaldson BOFA filters last for a long time and do not take up a large footprint.

HEPA icon

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns.  A secondary filter to remove fine particulate.

ACF Technology icon

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.

Multi Voltage Sensing Unit icon

Multi-voltage sensing

Automatically senses the local voltage and adjusts accordingly.

System OK icon

System OK signal (optional)

Our system OK signal alerts you when there is a fault, when filters are blocked, and when filters are approaching full capacity, allowing you to schedule maintenance efficiently.

Remote stop-start icon

Remote stop/start signal (optional)

Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.

VOC Sensor icon

VOC sensor (optional)

Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.

Technical specification

ImperialMetric
Dimensions23.23 x 14.76 x 18.31”590 x 375 x 465 mm
Weight77 lbs35 kg
Airflow / Pressure206 cfm / 96 mbar350 m³/hr / 96 mbar
Electrical data110-230 V 1 ph 50/60 Hz Full load current: 12.5 amps / 1.1 kw110-230 V 1 ph 50/60 Hz Full load current: 12.5 amps / 1.1 kw
Noise level (at typical operating speed)< 62 dBA< 62 dBA
Cabinet constructionPowder-coated mild steelPowder-coated mild steel
