3D PrintPRO 4

3D PrintPRO 4

A system for large, enclosed 3D printers
Ideal For: Polymer powder bed fusion, VAT polymerization, fused filament fabrication, material jetting.

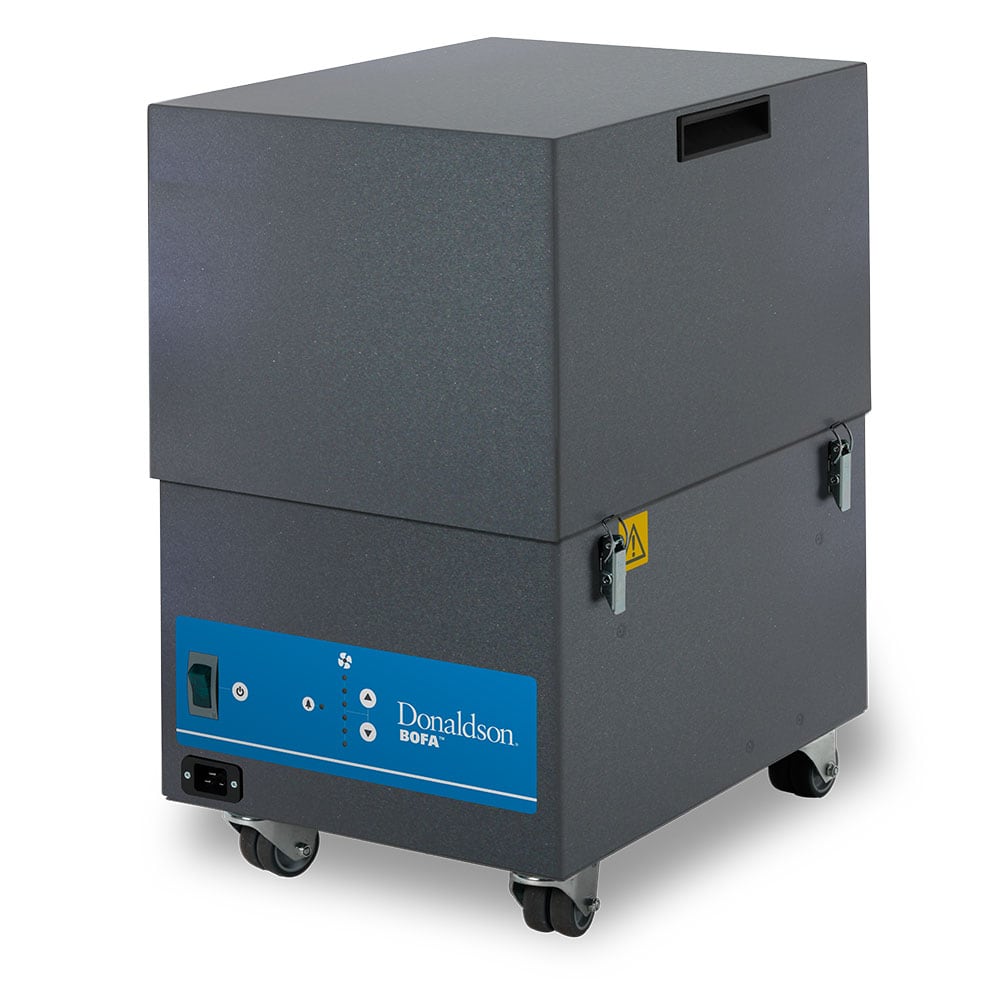

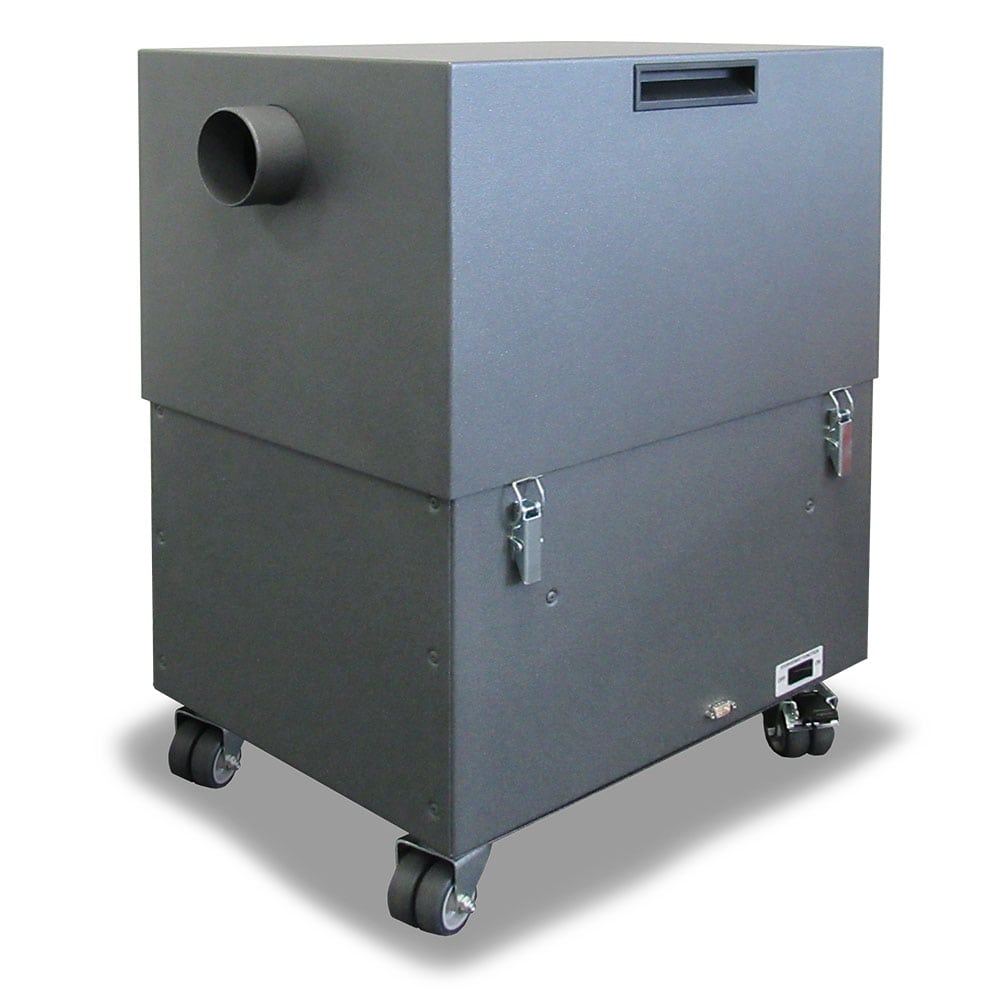

The 3D PrintPRO 4 is a filtration and atmosphere management system designed for large, enclosed, high-performance 3D printers. It connects to the 3D printer and returns filtered air either back into the printer enclosure or into the workplace environment. It features a unique combination of 4 filter mediums to optimize filtration performance. The system comes with a connection hose and ‘print your own’ plenum instructions.

  • Low noise level
  • High airflow rates

Approvals: UKCA and CE

Features

HEPA icon

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns.  A secondary filter to remove fine particulate.

ACF Technology icon

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.

Multi Voltage Sensing Unit icon

Multi-voltage sensing

Automatically senses the local voltage and adjusts accordingly.

Remote stop-start icon

Remote stop/start signal (optional)

Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.

VOC Sensor icon

VOC sensor (optional)

Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.

Filter change signal (optional)

Our filter change signal alerts you when your filter is full and needs changing.

Technical specification

ImperialMetric
Dimensions24.61 x 15.16 x 20.67”625 x 385 x 525 mm
Weight113 lbs51 kg
Airflow / Pressure159 cfm270 m³/hr
Electrical data115 V 60/50 Hz
Full load current: 9.5 amps
230 V 50/60 Hz
Full load current: 8.8 amps
Noise level (at typical operating speed)< 75 dBA< 75 dBA
Cabinet constructionPowder-coated mild steelPowder-coated mild steel
