3D PrintPRO 2
3D PrintPRO 2

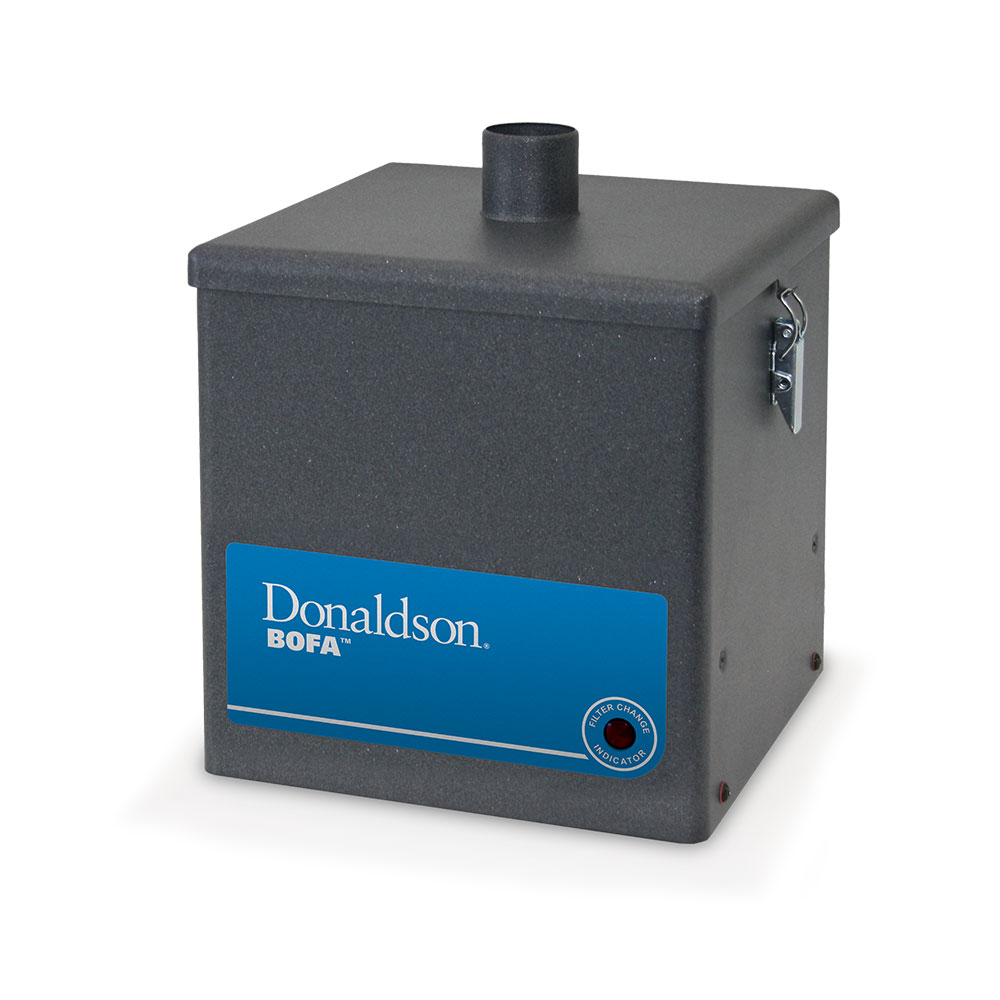

The 3D PrintPRO 2 is an affordable filtration and atmosphere management system for 3D printers. It’s designed to filter fumes generated by the printer without causing the filament deposition area to be cooled. It includes a connection hose, a ‘stay put’ arm, a conical-shaped nozzle, and ‘print your own’ plenum instructions.
- Small footprint
- Low noise level
Approvals: UKCA and CE
Features

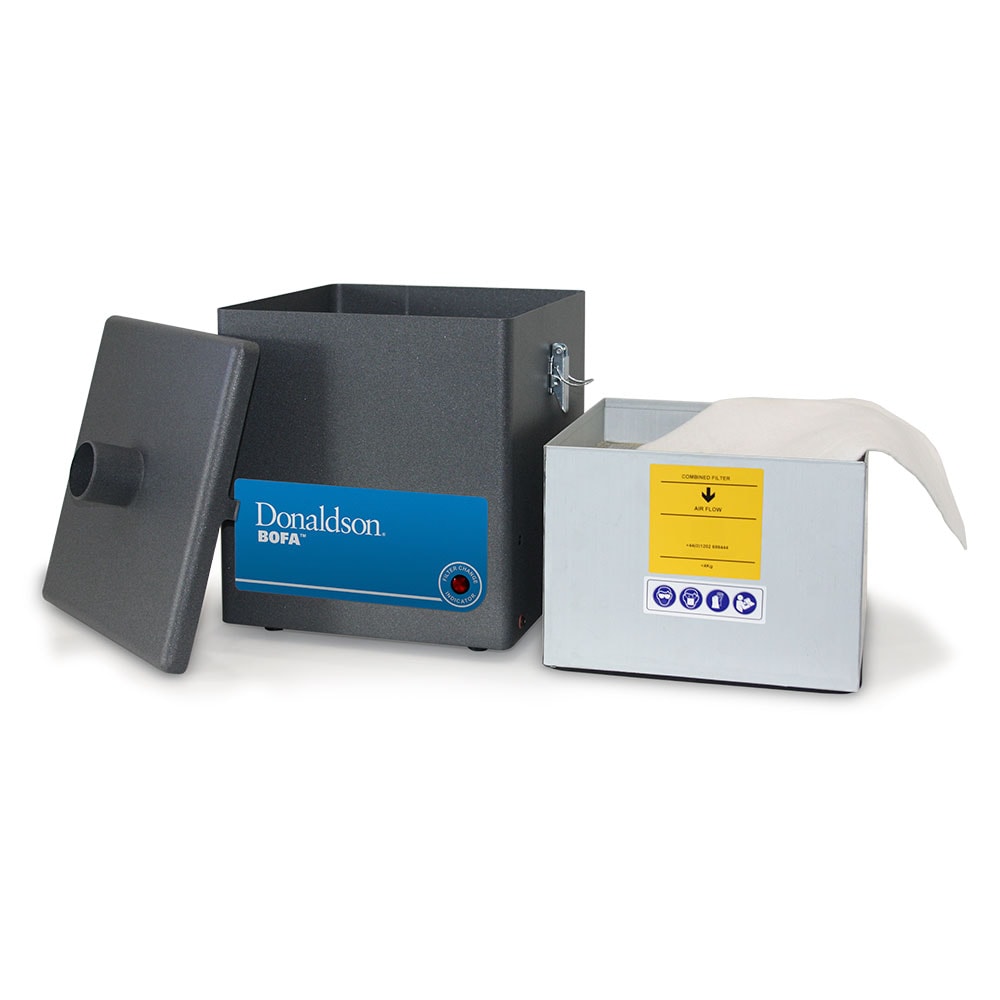

HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Multi-voltage sensing
Automatically senses the local voltage and adjusts accordingly.
Remote stop/start signal (optional)
Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions | 12.99 x 11.42 x 10.63” | 330 x 290 x 270 mm |
| Weight | 17 lbs | 7.8 kg |
| Airflow / Pressure | 27 cfm | 45 m³/hr |
| Electrical data | 115 V 50/60 Hz Full load current: 0.2 amps | 230 V 1 ph 50/60 Hz Full load current: 0.2 amps |
| Noise level (at typical operating speed) | < 44 dBA | < 44 dBA |
| Cabinet construction | Powder-coated mild steel | Powder-coated mild steel |
