FumeCAB 700

FumeCAB 700

A versatile fume cabinet for a broad range of applications
Ideal For: Conformal coating, gluing, potting, hand working processes, hand soldering, lead-free soldering, monomer mixing, powder weighing and handling.

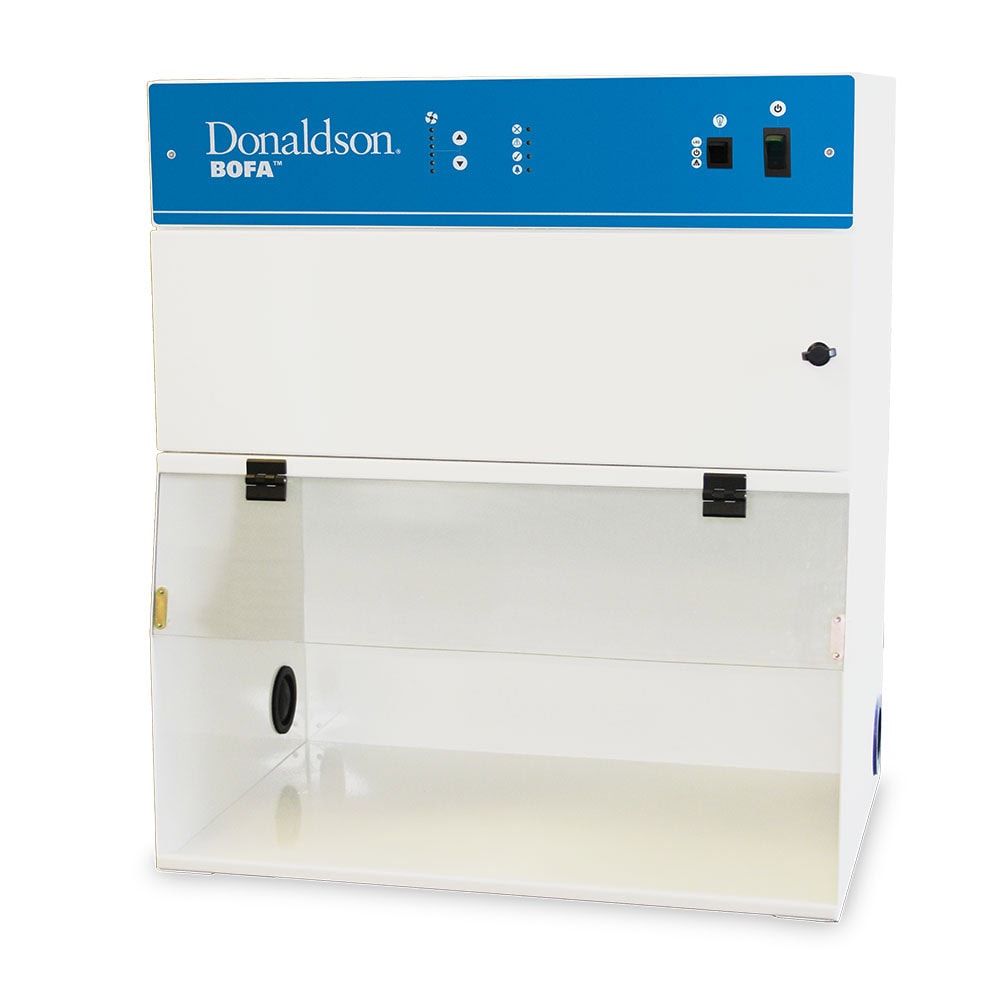

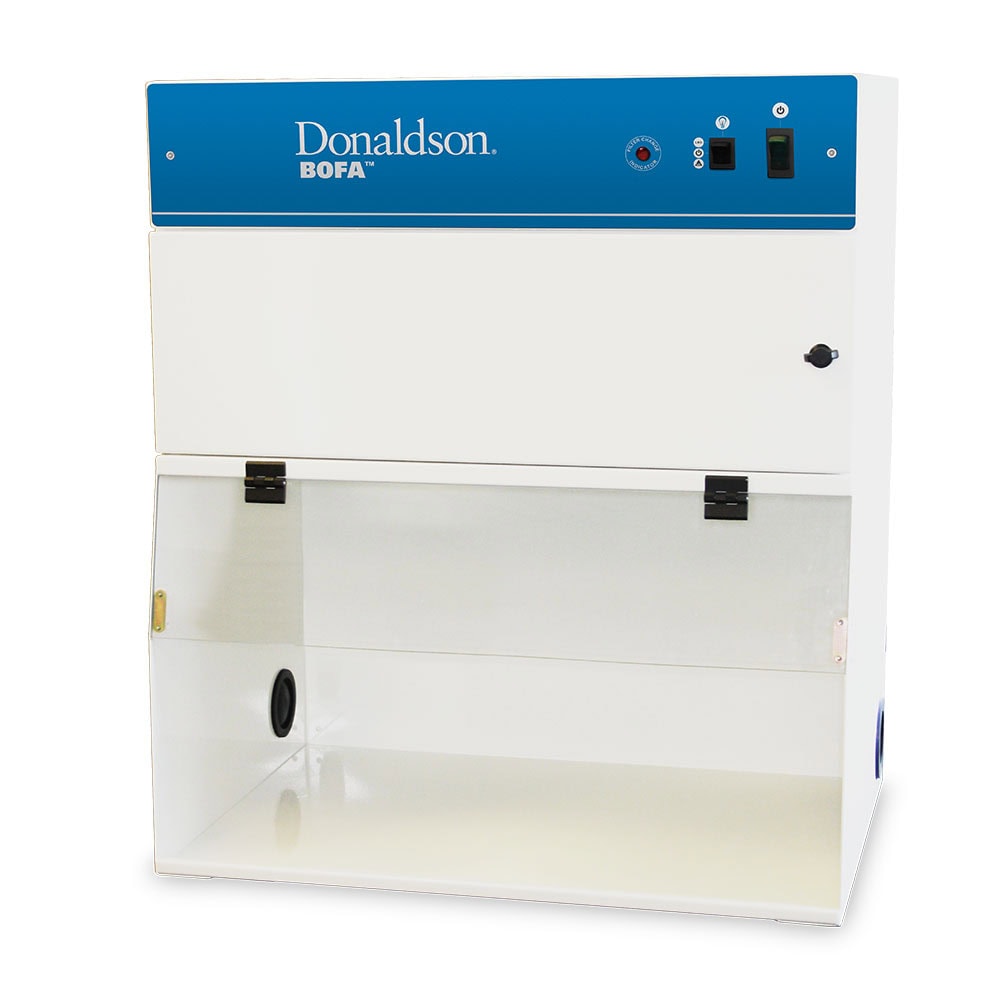

The FumeCAB 700 is a versatile fume cabinet suitable for a broad range of applications. Ultra-bright, energy-saving LED lights make it ideal for applications requiring operators to identify uniformity issues.

  • Low noise level
  • Large working area

Approvals: UKCA and CE

Features

HEPA icon

HEPA filter

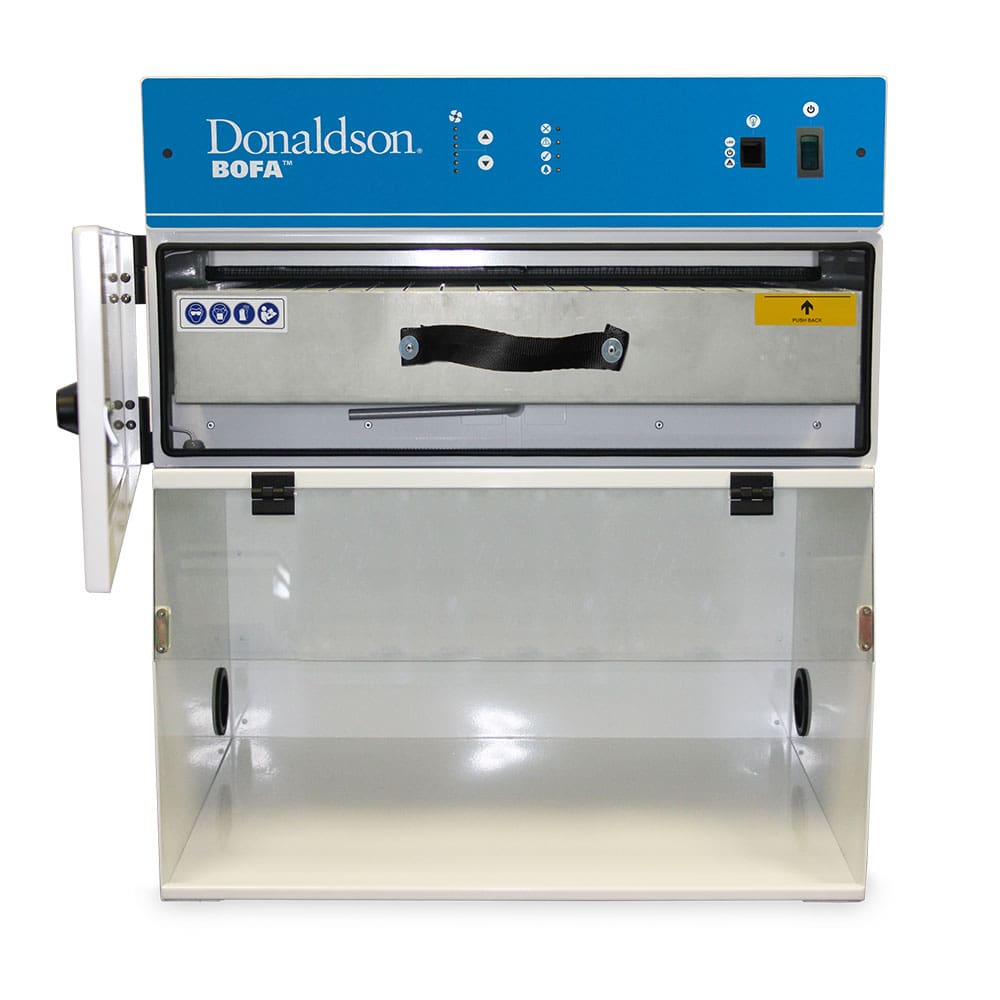

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns.  A secondary filter to remove fine particulate.

ACF Technology icon

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.

RFA Technology icon

Reverse flow air technology

Our reverse flow air technology reduces velocity and changes air direction, causing larger particulate to fall into the filter’s drop-out chamber. This decreases particulate entering the filter media, significantly enhancing filter capture performance, and extending filter life.

AFC Technology icon

Automatic flow control

Automatic flow control allows the user to pre-set the correct airflow rates for the specific application, subsequently helping to maintain the airflow. This generates lower noise levels and helps to protect the more expensive HEPA filters.

Conformal Coating icon

Conformal coating (optional)

A magnetic conformal coating protection.

UV Light icon

UV light (optional)

A UV light for conformal coating curing.

VOC Sensor icon

VOC sensor (optional)

Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.

Technical specification

ImperialMetric
Dimensions30.71 x 27.56 x 19.29”780 x 700 x 490 mm
Weight143 lbs65 kg
Electrical data115 V 50/60 Hz
Full load current: 3 amps
230 V 50/60 Hz
Full load current: 2 amps
Noise level (at typical operating speed)< 53 dBA< 53 dBA
Cabinet constructionPowder-coated mild steelPowder-coated mild steel

Product Inquiry

For more information about this product, please get in touch. Simply fill out the form, specify the system you’re interested in, and a member of the team will get back to you.

BOFA support team member

Filter Technology

We offer a variety of pre, main, and inline filters designed to effectively capture dust and particulate generated across a wide range of applications.

Smart Technology

Our Intelligent Operating System (iQ) provides easy-to-access real-time data on your extraction system’s performance. It provides improved extraction efficiency, individual filter status monitoring, and integrated design features.

SureCHECK

We uphold our quality standard through our unique SureCHECK process. We conduct rigorous testing and inspections on every product we make to ensure product integrity, reliability, and performance.
